Hotone MP-300 Ampero II

Hotone MP-300 Ampero

"Upgrade" is more than a 7-letter word. It embodies the continuation and evolvement beneath the surface, and embraces revolution and creativity outside the box. It’s what Ampero II Stomp does. Throughout years of grinding to establish its core technologies from empirical practice, Hotone team proudly presents this soul partner for your sophisticated taste in the sound of the music.

Specifications:

• Effects Digital Audio Signal Processing: 24-bit depth, 44.1kHz sample rate
• Frequency Response: 20Hz – 20kHz ± 1dB
• Dynamic Range: Max. 127dB (digital to analog)

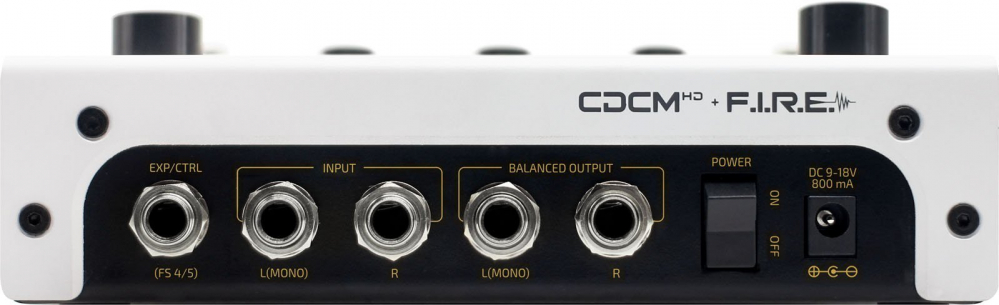

• Inputs: Two 1/4″ Tip Sleeve (TS) instrument jacks with individual input mode selector One 1/8″ • Stereo Auxiliary In (Aux In) jack One 1/4″ Tip Ring Sleeve (TRS) expression pedal/momentary footswitch input (EXP/CTRL) jack One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop return jack One Standard 5 pin MIDI input jack
• Outputs: Two 1/4″ Tip Ring Sleeve (TRS) balanced stereo output jacks One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop send jack One 1/8″ stereo
headphones output jack One standard 5 pin MIDI output jack
• Input Impedance: Input: E.GT: 1MΩ; A.GT: 4.7MΩ; LINE: 10kΩ FX Loop Return: 100kΩ Aux In: 10k
• Output Impedance: Output: 1KΩ FX Loop Send: 1KΩ Headphones: 47Ω
• Input Level: Input: -17.78dBu (Nominal); 14.5dBu (Max) FX Loop Return: -17.78dBu (Nominal); 14.5dBu (Max) Aux In: -17.78dBu (Nominal); 20dBu (Max)
• Output Level: Output: -11.76dBu (Nominal); 26.25dBu (Max) FX Loop Send: -17.78dBu (Nominal); 14.5dBu (Max) Headphones: -7.4dBu (Nominal); 18.3dBu (Max)
• Screen: 4″ 800 x 480 Color Dynamic Display Touch Screen
• USB Port: USB 2.0 Type-C port, supports USB Audio 2.0
• Impulse Response/IR processing: Supports 24-bit/44.1kHz Mono WAV files, 1024 and 2048 points; Supports up to 50 user IRs
• Power Requirements: 9-18V DC Center Negative
• Current Consumption: 800mA Max (9V DC)
• Dimensions: 185mm(W) x 145mm(D) x 58mm(H)
• Weight: 1050g
