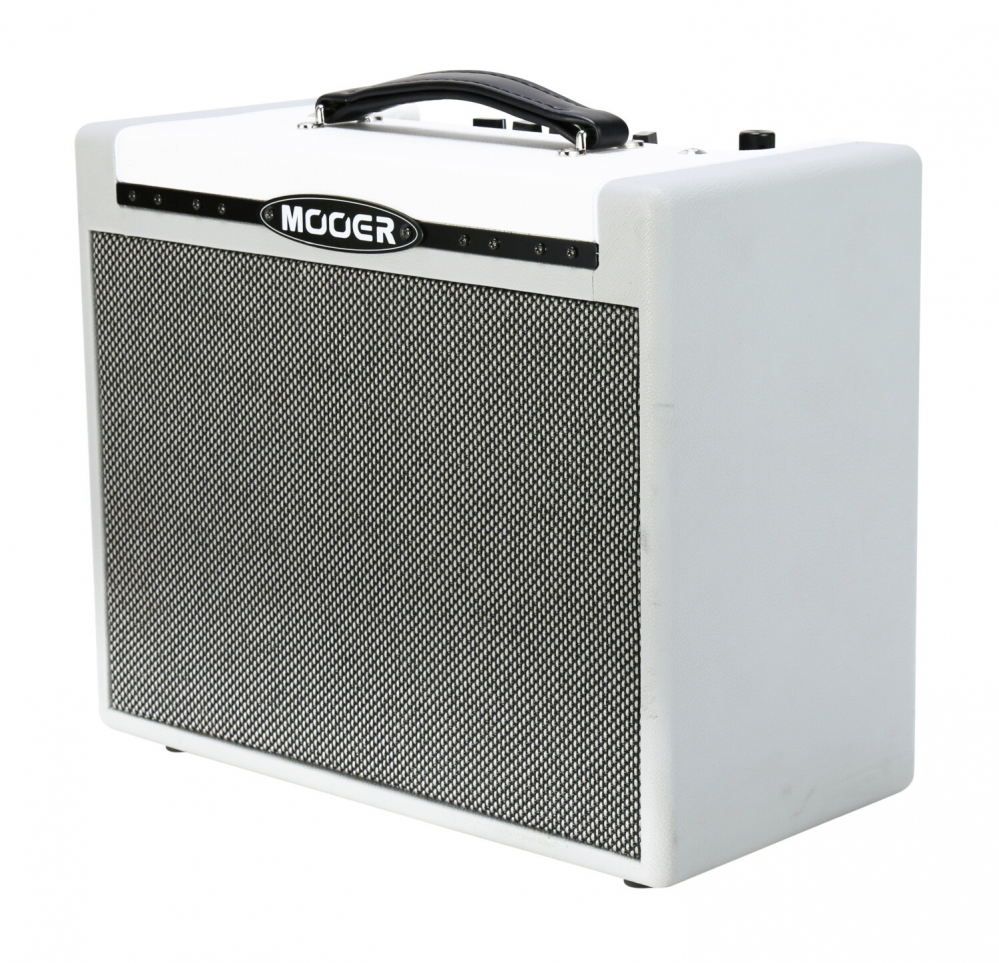

Mooer SD30

Mooer SD30

The SD amplifier series is a harmonious marriage between MOOER’s famous digital preamp technology and a new take on traditional solid-state Class A/B amplification techniques, that
deliver professional “tube like” performance, touch and feel, at entry level prices.

Each model in the SD series comes fully loaded with a whole host of special-features and effects, that provide everything you need to craft incredible guitar tones for creating music on-stage or in the practice room. These tones can be stored within 40 preset slots and easily recalled using the proprietary wireless footswitch.

SD amps have a unique JAM section that contains a whole suite of tools for solo performers and creative aficionados alike, such as an integrated looper, syncable drum machine and Bluetooth
connection for playback of your favorite audio tracks from an external device.

The combo amps currently available in 30Watt and 75Watt versions, house custom-built guitar speakers, designed to deliver rich harmonics and enhanced feel with clarity, articulation and
dynamics throughout the amplifiers full volume range.

Specifications:

• Input: 1 /4” mono audio jack
• AUX IN 1 /8” stereo audio jack
• SEND/RETURN 1/4” mono audio jack
• HEADPHONE OUT: 1 /8” stereo audio jack
• SPEAKER OUT 8Ω-16Ω 30Watts 1/8” mono jack (unbalanced speaker cable)
• POWER Amp 30watt，class A/B
• USB Type-B
• Power supply: 220V-240V AC /100V-120V AC
• Power Fuse Contains the main power protection fuse and a backup replacement fuse. If the amplifier cannot power on, inspect the protection fuse and replace if necessary.
• T500mA - 220V-240V
• T1000mA- 100V-120V
• Dimension: 420mm x 217mm x 368mm
• Weight: 8.3kg
• SPEAKER: 1 x 8" Custom 50W 8Ω Driver
• Amp Models 25
• Effects 28 (DS/OD:8; MOD:9; DELAY:5; REVERB:6 )
• LOOPER 150 seconds
• DRUM PATTERNS 40
• METRONOME 10
• PRESETS: 40
• Accessories: Owner’s manual; Power Cable
