LD Systems VIBZ 12 DC

LD Systems VIBZ 12 DC

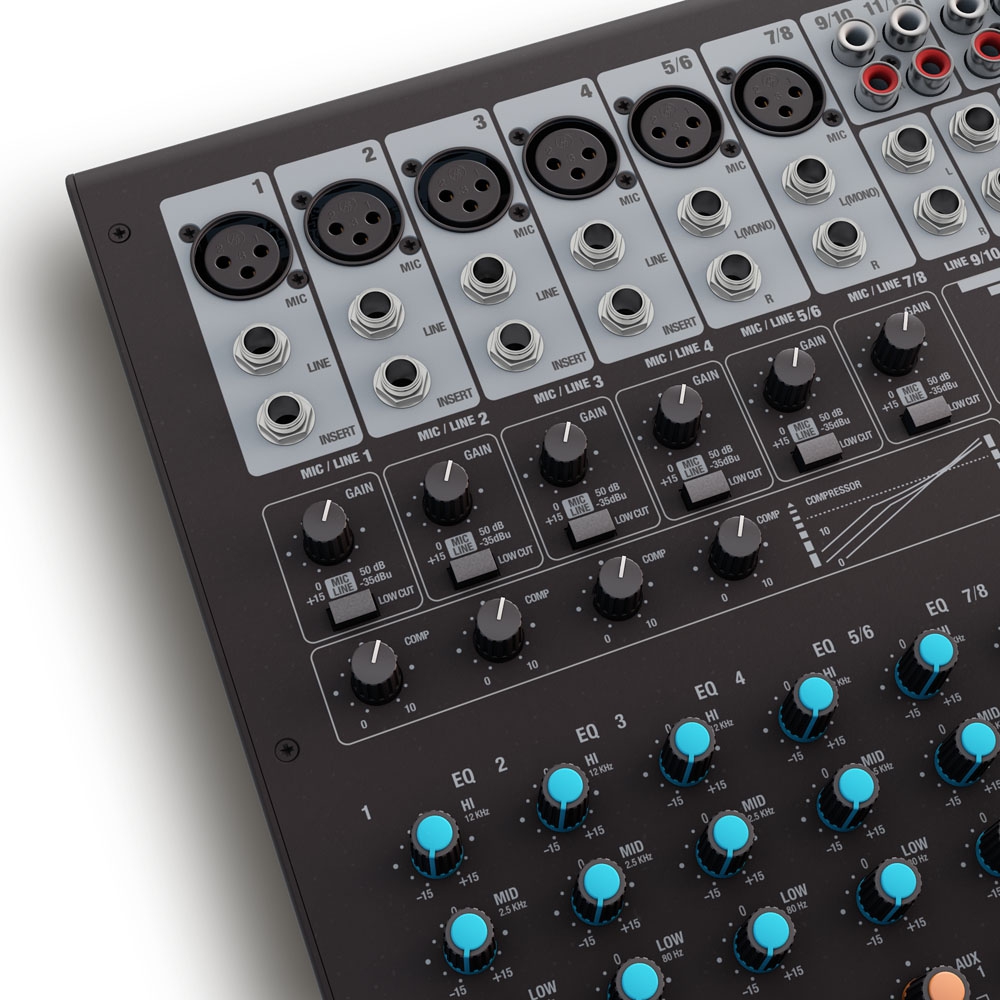

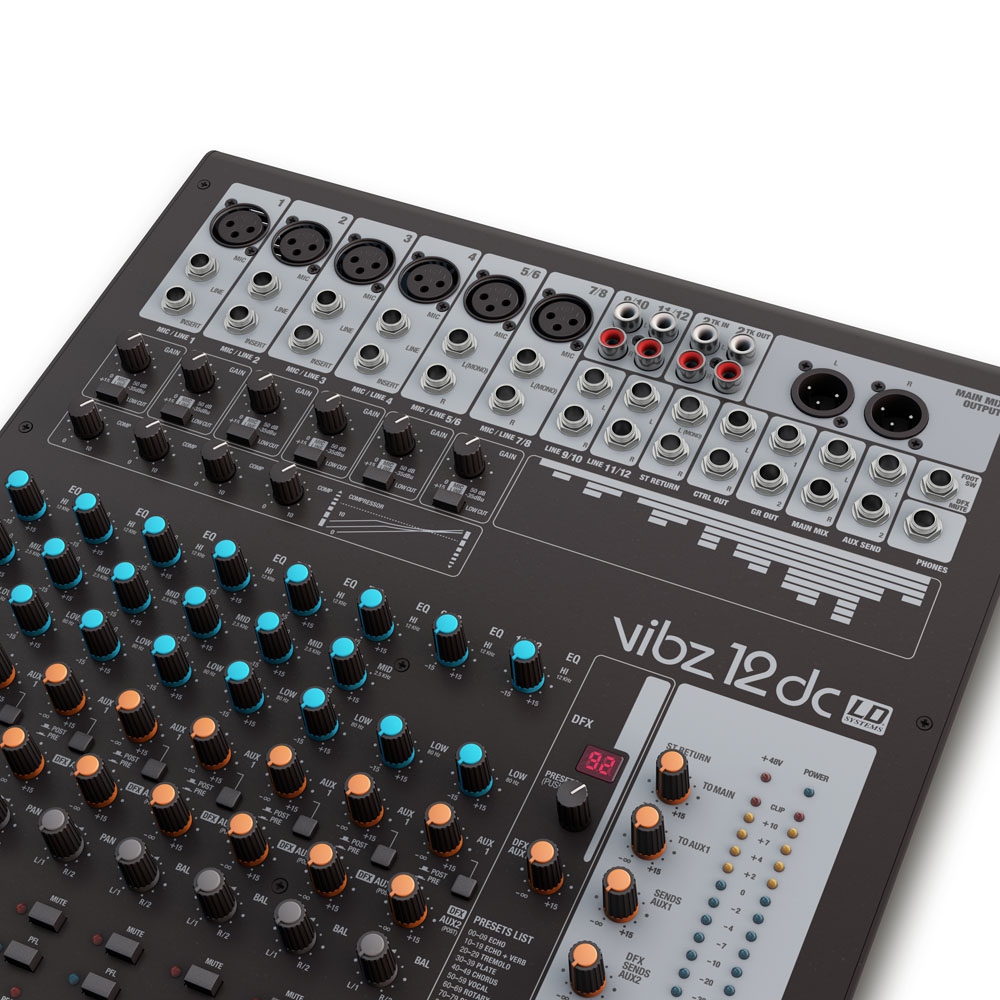

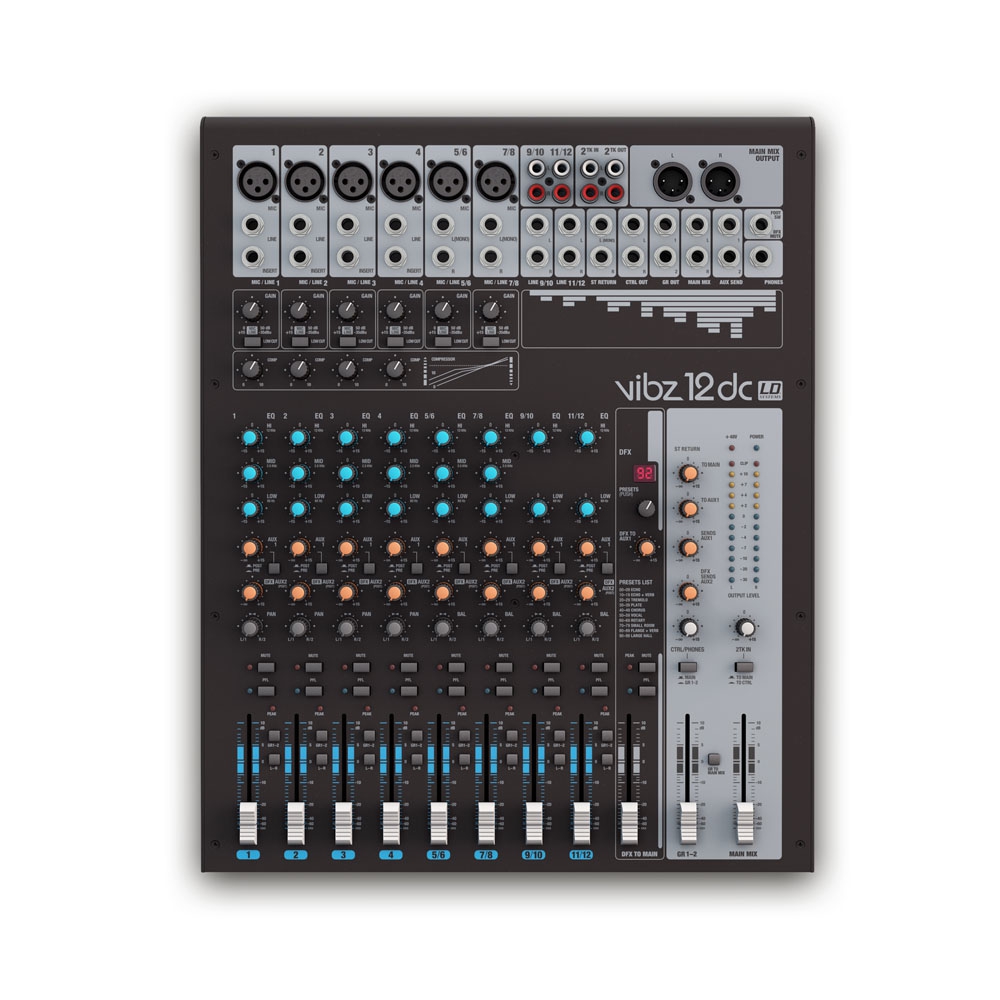

The VIBZ 12 is a versatile mixer with six balanced microphone inputs featuring high quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power.

Four microphone channels can be processed separately using the built-in compressor for an effective control of dynamics; two more can alternatively be used as a stereo line channels. The other stereo channels are equipped with 2-band EQs.

The master section of the mixer includes two effects loops, balanced XLR outputs, group and monitor outputs and a headphone jack. The VIBZ 12 also has RCA connectors for recording and playback devices and a digital Digital Effects Section with 100 presets.

With key features such as the PFL function or the Mute buttons and its natural, transparent sound, the VIBZ 12 is the perfect choice for live performances, installations and demanding home recording applications.

Specifications:

General
• Product type: Mixers
• Type : Live
• Channels : 12

Mono Channels:
• Mono Mic and Line Input Channels: 4
• Mono Mic input connectors: 6.3 mm TRS, XLR
• Mono Mic Input Type: Electronically balanced
• Mono Mic Input Frequency Range: 10 - 45000 Hz
• Amplification Range mono Mic Input: 0 - 50 dB
• Mono Mic Input Input THD-N: 0.0058%
• Mono Mic Input Impedance: 4k Ohm(s)
• Mono Mic Input S/N Ratio: 113 dB
• Mono Line Input Type: Electronically balanced
• Mono Line Input Frequency Range: 10 - 45000 Hz
• Amplification Range mono Line Input: 0 - 50 dB
• Mono Line Input Input THD-N: 0.0045 %
• Mono Line Input Impedance: 21k Ohm(s)
• Mono Line Input S/N Ratio: 116 dB
• Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz
• Mono Channel Equalizer Mid: +/- 15 dB @ 2,500 Hz
• Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
• Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Compressor, DFX/AUX 1, Gain, Low Cut (75 Hz), PFL
• Phantom power: 48 V DC switchable

Stereo Channels:
• Stereo Line Input Channels: 4
• Stereo Line Input Connectors: 6.3 mm TRS, RCA
• Stereo Line Input Type: Electronically balanced, Unbalanced
• Stereo Line Input Frequency Range: 10 - 45000 Hz
• Amplification Range stereo Line Input: 0 - 50 dB
• Stereo Line Input Input THD-N: 0.0045 %
• Stereo Line Input Impedance: 3,7k Ohm(s)
• Stereo Line Input S/N Ratio: 116 dB
• Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz
• Stereo channel equalizer mids: +/- 15 dB @ 2500 Hz
• Stereo channel equalizer bass: +/- 15 dB @ 80 Hz
• Controls Stereo Line Input Channels: 2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Balance, Channel Volume, DFX/AUX 1, Gain, Low Cut

Main Section:
• AUX / Effects Send Channels: 2
• AUX / Effects Send Connectors: 6.3 mm TRS
• Stereo AUX Return Channels: 1 x stereo
• Stereo AUX Return Connectors: 6.3 mm TRS
• Stereo Tape Out Channel: 1 x stereo
• Stereo Tape Out Connectors: 2 x RCA (Cinch)
• Stereo Tape In Channel: 1 x stereo
• Stereo Tape In Connenctors: 2 x RCA (Cinch)
• Balanced Stereo Main Out: 1
• Balanced Stereo Main Out Connectors: XLR
• Balanced Stereo Main Out Impedance: 120 Ohm(s)
• Max. Balanced Stereo Main Out Level: 23 dBu
• Stereo Control Room Out: 1
• Stereo Control Room Out Connectors: 6.3 mm TRS
• Headphones ouput: 1
• Headphones outputs: 6.3 mm TRS
• Digital Effects Processor: Yes, 24-bit AD/DA Resolution
• Number of Presets: 100
• Footswitch Connector DFX Mute: 6.3 mm TRS
• Main section controls: 2-track Assignment (Main, Contr. Room), 2-track In Volume, AUX 2 Send Volume, CTRL / Phones assignment (Main/Group 1-2), DFX Mute Schalter, DFX TO AUX Volume, DFX To Main Volume, Group 1-2 assignment to Main MIX, Group 1-2 Volume, Master Volume, PFL, Phantom Power, Power, presets, Stereo Return to AUX Volume, Stereo Return to MAIN Volume, Volume Control CTRL / Phones
• Indicators: DFX Peak, DFX TO MAIN, PFL, Phantom Power, Power

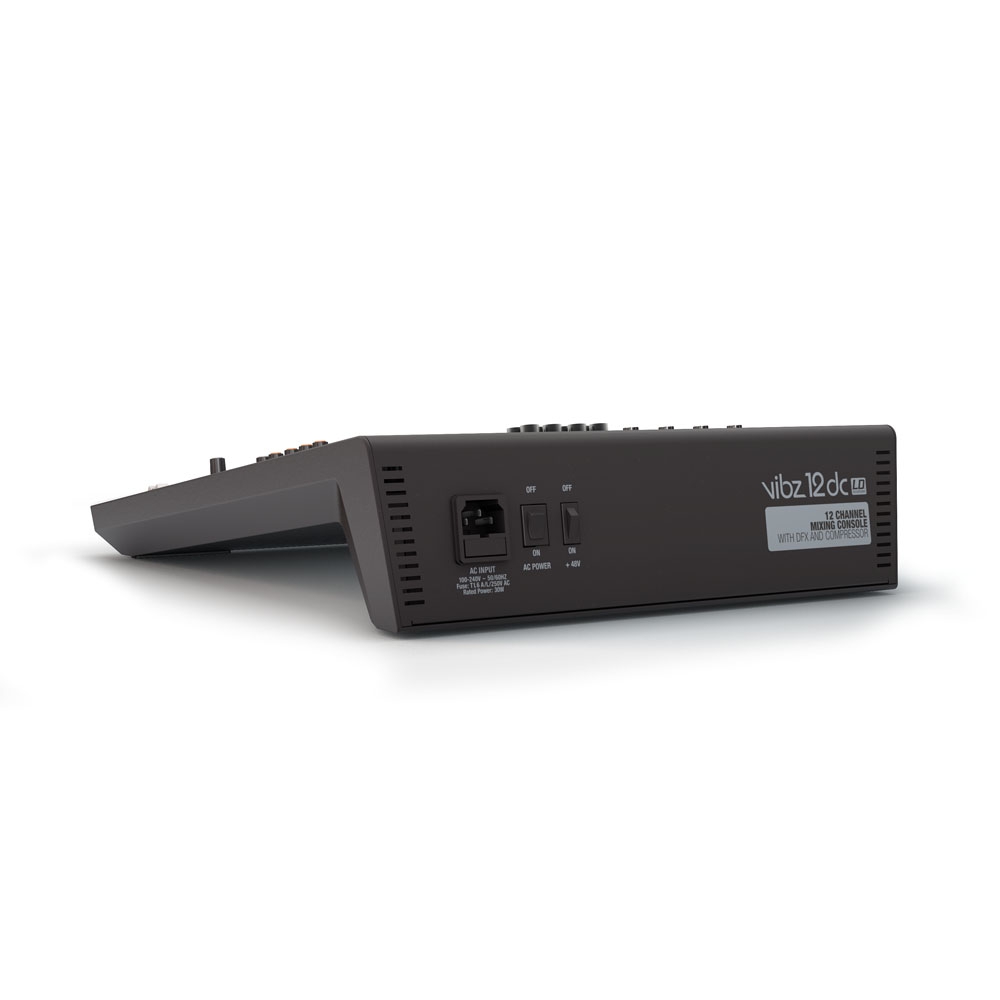

• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Width: 350 mm
• Height: 98 mm
• Depth: 440 mm
• Weight: 4,3 kg
