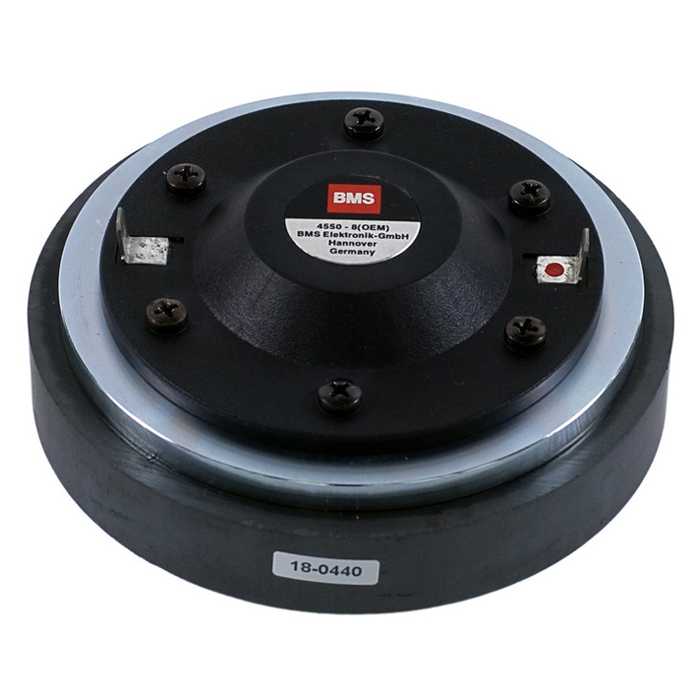

BMS 4550 H

BMS 4550 H

• Product type: High-frequency Drivers
• Nominal Diameter: 1 "
• Nominal Diameter: 25.4 mm
• Voice Coil: 1.75 "
• Voice Coil: 44.4 mm
• Overall diameter: 123 mm
• Pitch Circle Diameter: 76.2 mm
• Depth: 52 mm
• Nominal Impedance: 16 Ohm(s)
• Nominal Load Capacity: 80 W
• maximum rated load: 450 W
• Sensitivity (horn 1 W / 1 m): 113
• Frequency response: 500 - 20000 Hz
• Recommended crossover frequency: 800 Hz
• Voice Coil Carrier: Kapton
• Diaphragm material: polyester
• Magnet: ceramic
• Recommended horn: BMS2119, BMS2193, FPSTH100
• Mounting holes: 2
• Diameter of fixing holes: M6
• Pitch Circle Diameter (bolt on): 76.2 mm
• Weight: 2,223 kg
