Radial Pz-Deluxe Tonebone Pz Deluxe Acoustic Instrument Preamp

- Tonebone Deluxe Acoustic Instrument Preamp
- Combination of instrument preamp and direct box
- Exceptionally quiet audio performance
- Works on all types of pickups and transducers
- Class A FET Hybrid Input Stage
- Dynamic range: 105 dB
- Total harmonic distortion: 0.03%@ - 20dB output
- Equivalent Input Noise: -108dBu
- Intermodulation distortion: 0.07%
- Total Harmonic Distortion: 0.03% @ - 20dB output
- Equivalent input noise: -108dBu

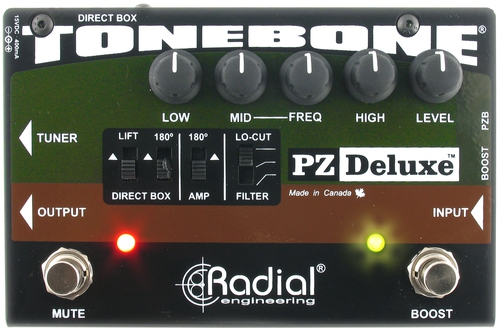

Controls and connections:
- Input Gain
- Three position low frequency resonance filter and 180 Degree polarity reverse switches
- Balanced, low impedance output: enables the PZ-Deluxe to drive long cable runs of over 100 meters without noise
- Separate tuner output enables quiet on-stage adjustments by depressing the mute switch
- Variable power booster with set & forget level control
- Footswitches for muting and power booster
- LEVEL: Fully adjustable control sets the PZ-Deluxe overall volume level on the stage and DI outputs
- MUTE: shuts off the outputs going to the stage amp and low-Z direct out to allow quiet on-stage tuning.
- BOOST: Footswitch, increases the level for solos when needed.
- PZB - Extra gain stage: adds more drive and elevates the input impedance for optimized use with piezo transducers
- 3 BAND EQ - Semi-parametric equalizer with separate high and low shelving with a variable mid-frequency for optimal tone shaping

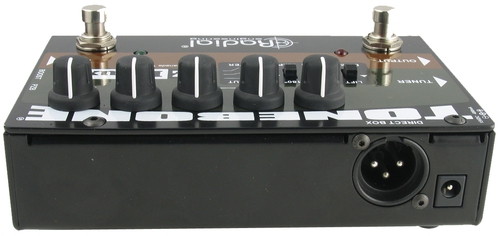

- DI OUT: sends balanced mic level output to the PA system (XLR)
- 15V DC 400mA PSU: Power supply connection used to power the PZ-Deluxe
- TUNER: Separately buffered tuner output, always on to allow on-the-fly adjustments
- AMP OUT: Separate 6.3mm Jack guitar output to feed the artist's on-stage amplifier or in-ear monitoring system
- LIFT: Lifts pin-1 on the XLR output to help eliminate hum and buzz caused by ground loops.
- Power supply (included): 15V DC adaptor, (+) tip, (-) barrel
- Size: 155 x 96.5 x 53mm
- Weight: 0.8kg
- Made in Canada
