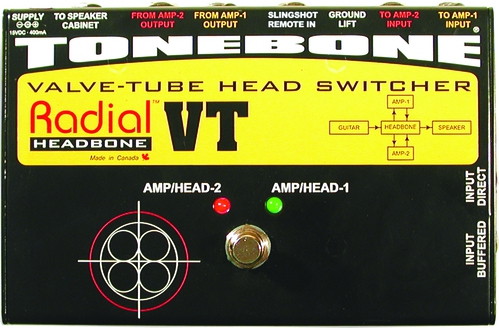

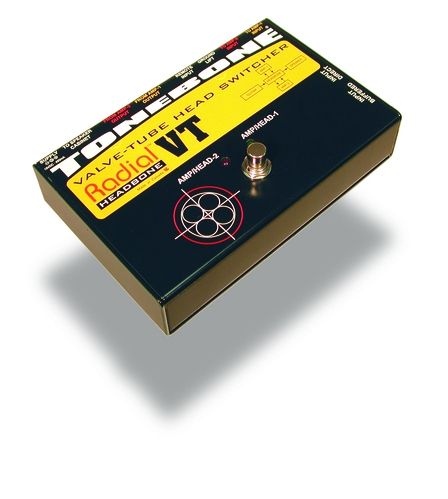

Radial Headbone-Vt Tonebone Headbone Vt 2 Valve Amps

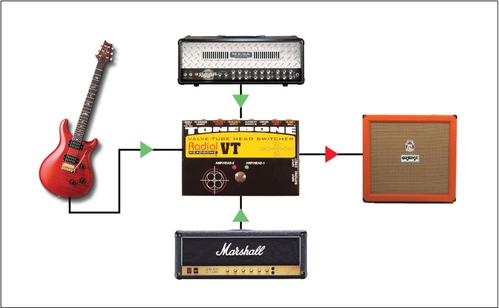

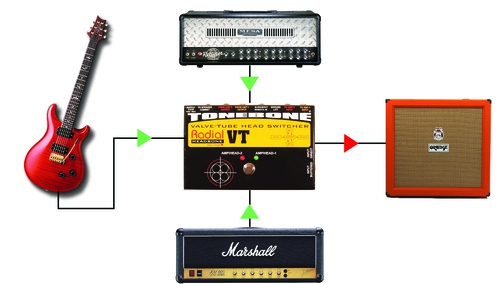

- Guitar amplifier switcher to use two heads with one cabinet
- Class-A audio circuit for best sound
- Opto-coupler switching for audio circuits
- High performance relays for speakers
- Load resistor provides standby amplifier load
- SafeMode? power-off safety system
- Choice between buffered or unbuffered inputs
- Slingshot? remote control input

Controls and connectors:
- Input Buffered: This is the primary input for your guitar and pedal effects that do not buffer (pre-amplify) the signal
- Input Direct: Used when driving the Headbone from a device, like the Radial Loopbone, that buffers (pre-amplifies) the signal
- To Amp-1 Input: This is a 6.3 mm hi-impedance guitar signal output that connects from the Headbone to the input of the first guitar amplifier.
- To Amp-2 Input: This is a 6.3 mm hi-impedance guitar signal output that connects from the Headbone to the input of the second guitar amplifier.
- Ground Lift: This recessed switch connects the ground to Amp-2. This switch is factory set in a 'lifted' position to eliminate ground loops.
- Slingshot Remote Input: This 6.3 mm input is used to remotely control the Headbone from your pedalboard using a standard contact closure footswitch or another Tonebone device that features a Slingshot output.
- From Amp-1: Output connects from the first amplifier's speaker output jack back to the Headbone.
- From Amp-2 Output: Connects from the second amplifier's speaker output jack back to the Headbone.
- To Speaker Cabinet: Connects the Headbone to your speaker cabinet.
- Footswitch: Used to toggle the Headbone between Amp-1 and Amp-2
- Status LEDs
- Power supply (included): 15V DC (400mA) adaptor, (+) tip, (-) barrel
- Dimensions (W x D x H): 175 mm x 114 mm x 51 mm
- Weight: 1000 g
- Made in Canada
