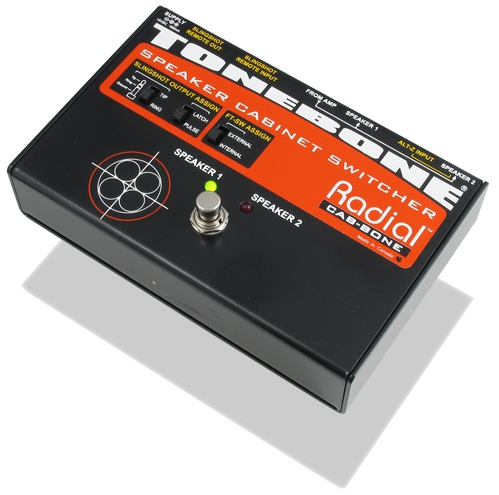

Radial Cabbone Tonebone Cabbone Speakercabinet Switcher 100w

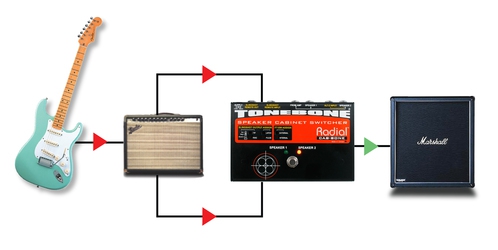

- Toggle between two cabinets using one head
- Time overlap safely performs switching
- Remote or local switching capability
- Available in choice of 100W (Cabbone R800 7086) and 300W (Cabbone EX R800 7087) models

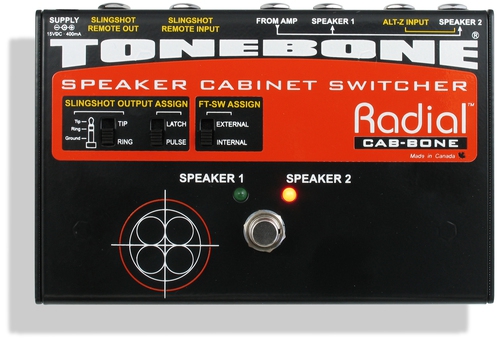

- Slingshot remote output 6.3 mm: Can be used to send a channel change command to the guitar amplifier or to another Cabbone for large multi-amp stage set-ups.
- Remote output assign: Allows you to configure the output switching to match your amplifier's footswitch configuration for latching or momentary operation and tip or ring positive with dual function 6.3 mm TRS switch types.
- Slingshot remote input 6.3 mm: Used to receive a status change command from a remote foot-switch, another Slingshot equipped pedal, or a MIDI controller.
- FT SW assign: Allows the Cabbone to receive speaker status change commands from the on-board footswitch, or from an external device. When set to external, the Cabbone's footswitch is defeated
- From amp input jack 6.3 mm: Used to receive the speaker output signal from the amp head. Maximum input 120 watts.
- Speaker-1 output jack 6.3 mm: Used to connect to your main speaker cabinet.

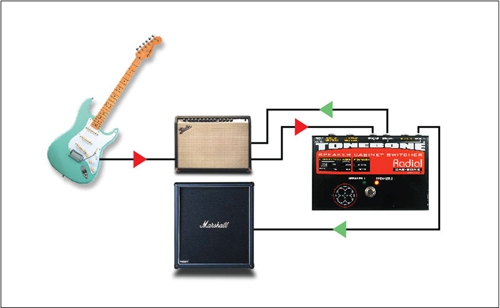

- ALT-Z input jack 6.3 mm: Designed for amps that are equipped with multi-tap transformers with various speaker impedance options to properly match amp and speaker loads.
- Speaker-2 output jack 6.3 mm: Used to connect to your second speaker cabinet.
- LED indicators: Large, easy to see LED indicators for instant visual monitoring of speaker cabinet status.
- Footswitch: On board footswitch is used to select between speaker cabinet one or two
- Power supply (included): 15V DC (400mA) adaptor, (+) tip, (-) barrel
- Dimensions (W x D x H): 175 mm x 108 mm x 54 mm
- Weight: 1000 g
- Made in Canada
