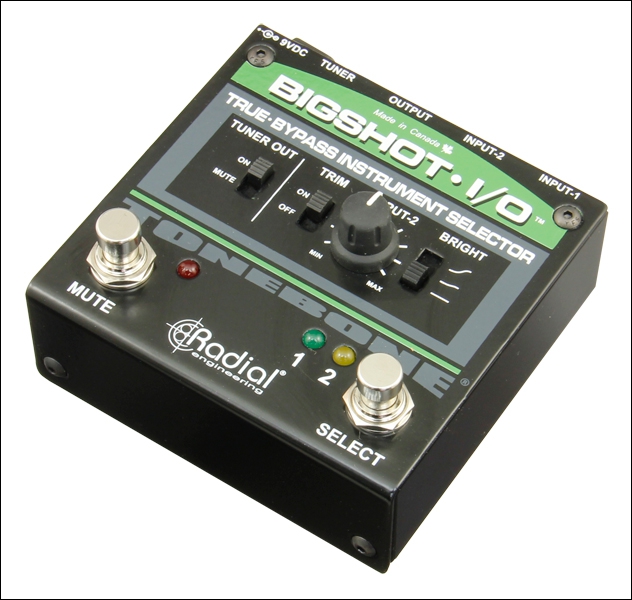

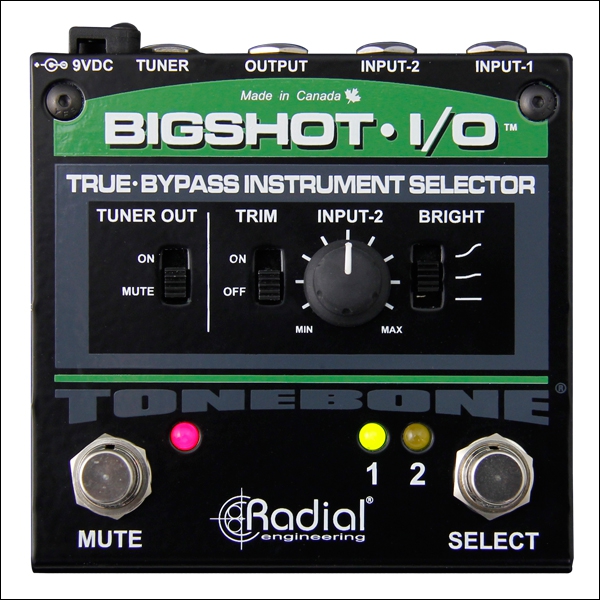

Radial Bs-Io-V2 Tonebone Bigshot I/O True Bypass Instrument Switcher

The Radial BigShot i/o is an easy to use instrument selector that lets you quickly transition between any two instruments and send the output signal to your amp. Because the i/o is 100% true-bypass, it addresses the needs of the most demanding purist. To enhance functionality, input-2 is equipped with a volume control that lets you reduce the input sensitivity of the louder instrument so that the two instrument output levels match. Simply connect the louder of your two instruments to input-2 and set the level to suit. When passive instruments are used, a unique 3-position 'bright switch' lets you compensate for high frequency loss. The BigShot i/o is also equipped with a separate tuner output. With a simple foot stomp, the sound going to the amp is muted and diverted to the tuner for quiet on-stage adjustments. Super-bright LED indicators provide instant status for the input select and mute functions. Compact, extremely rugged and 100% passive, the BigShot i/o does not require any powering to make it work other than for the LEDs. The BigShot i/o... the perfect instrument selector for stage use.

- instrument switcher/selector
- 100% passive, true bypass (via TRIM switch)
- 2 instrument inputs, separate Tuner output
- Volume control for reducing level of Input 2
- Tuner Out switch for selecting whether Tuner out is always on or only when Mute Footswitch pressed
- TRIM switch for bypassing the Volume and Bright switch
- 3-way Bright switch for compensating high frequency loss
- Mute footswitch
- Select footswitch
- status LEDs
- metal housing

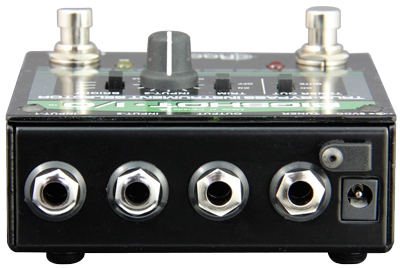

- 6.3 mm mono In-/Output jacks
- power supply via optional 9V DC adapter
- 2.1 x 5.5 mm, polarity (-) center
- battery operation not supported
- power supply only required for indicator LEDs
- dimensions (L x W x H): 100 mm x 100 mm x 52 mm
- weight: 560 g
- made in Canada
