MXR M292

The Carbon Copy Deluxe Analog Delay adds a bevy of new features to fine-tune the warm, organic sound that has made the original the bestselling analog delay in the world. With extended delay time-now up to 1.2s-and tap tempo functionality, you now have more control over your Carbon Copy repeats than ever. The Tap Division feature, with an easy-to-read status display, gives you four different subdivisions: dotted 8ths, 8ths, triplets, and 16ths. On the tonal side, the Carbon Copy Deluxe Analog Delay lets you choose between the original's dark, mellow wash and the vibrant articulation of the Bright version with the push of a switch. To add further character and texture to your repeats, just hit the Mod switch and use the Speed and Width controls to shape the chorusing to your taste. Additional features include an expression jack for external control of various functions, programmable presets, and more.

- delay effects pedal
- analog
- 1.2 seconds delay time
- sound of Carbon Copy oiginal and Bright version in one pedal
- delay time modulation controls accessible on the top
- tap tempo functionality
- tap tempo divisions
- 2 programmable presets
- true bypass

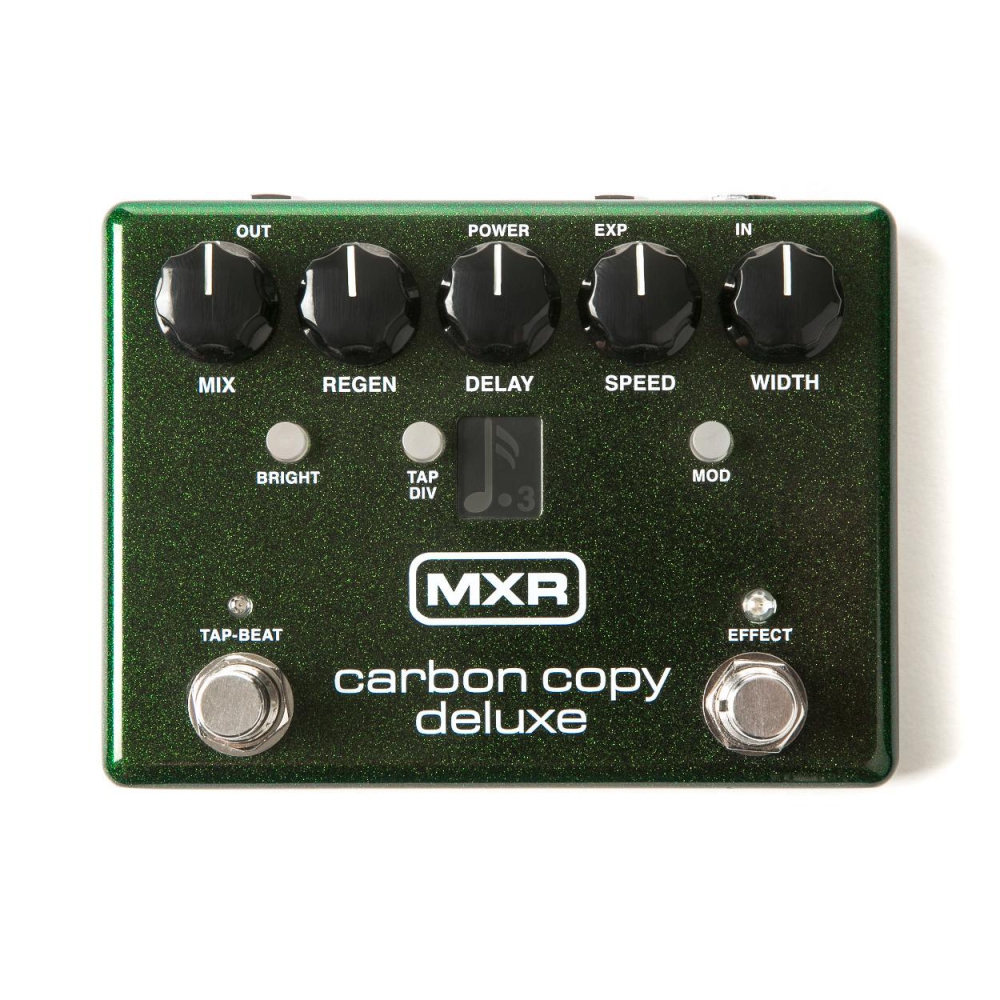

- controls for Mix, Regen, Delay, Speed and Width
- Bright control button for enableing Bright mode
- Tap Div control button for selecting the tap tempo division (dotted 8ths, 8ths, triplets, and 16ths)
- Mod control button for enableing delay time modulation
- internal Line Level/Instrument Level dip switch
- internal controls for Guitar/Line level input
- internal Dry Kill switch for wet only output
- Effect footswitch
- Tap-Beat Footswitch
- status LEDs
- tap division LED display
- metal housing

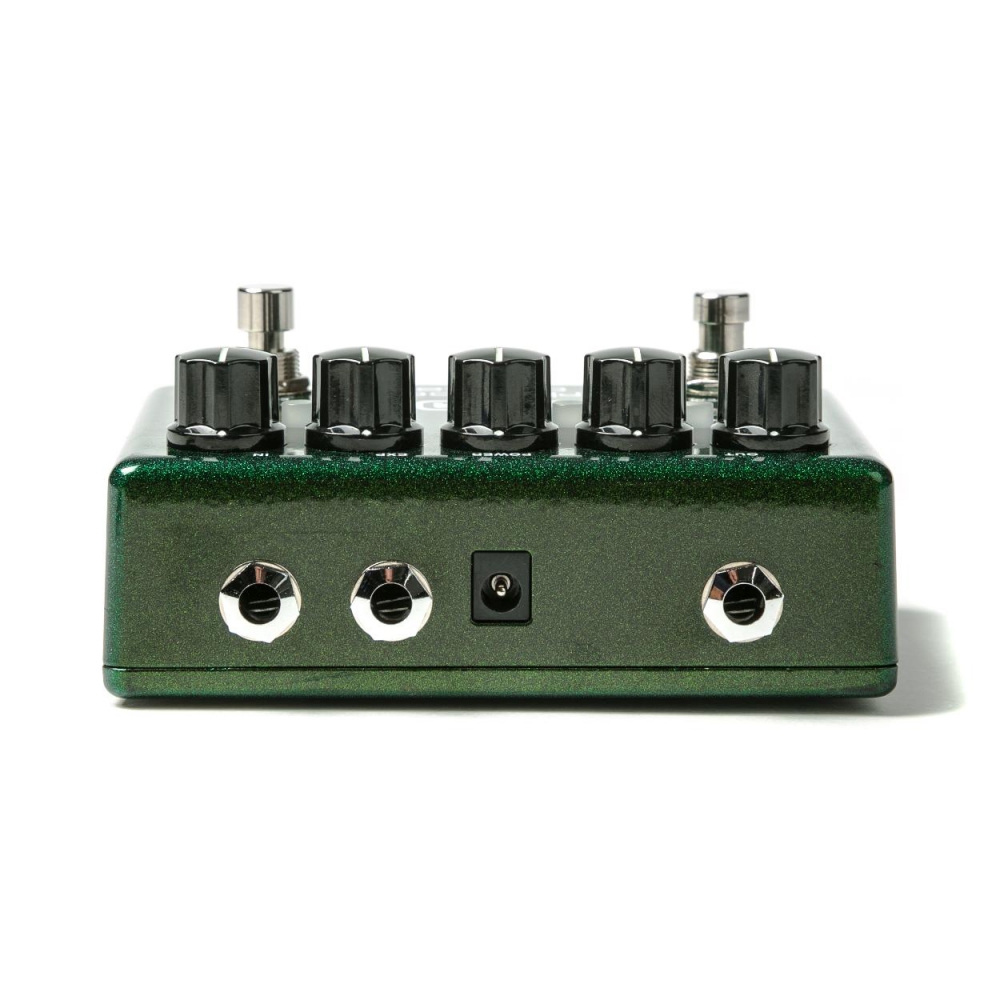

- 6.3 mm mono IN/OUT jacks
- 6.3 mm TRS Expression control input
- power supply via 9V battery or optional 9V DC (Dunlop ECB 003) power supply, 2.1 x 5.5 mm barrel plug, polarity (-) center
- dimensions (L x W x D) 124 x 92 x 54 mm
- weight 700 g
