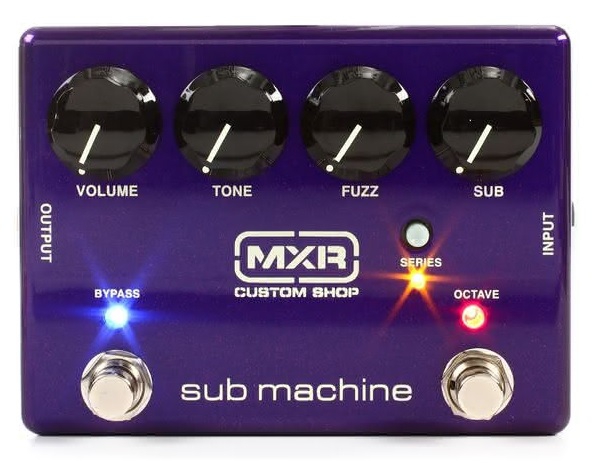

Mxr M 225

First conceived in the MXR Custom Shop, the MXR Sub Machine? Fuzz kicks open the door to epic and unbridled sonic exploration. This mean little box combines the shaggy vintage tones of the La Machine Fuzz with a growling sub-octave circuit, giving you a one way ticket to the sonic frontiers of heavy.

To further broaden the Sub Machine Fuzz's thunderous tonal palette, the MXR team added a Series switch so you can run the sub-octave signal straight into the fuzz-for some seriously subterranean saturation-or alongside the fuzz for a split channel effect.

- octave/fuzz effect pedal
- combines La Machine Fuzz with old school Sub-Octave signal
- separate volume levels for Fuzz and Sub-Octave signals
- controls for Volume, Tone, Fuzz and Sub
- control button for Series/Parallel mode
- bypass footswitch
- octave footswitch
- status LEDs
- metal housing
- 6.3 mm mono IN/OUT jacks
- power supply via 9V battery or optional 9V DC (Dunlop ECB 003) adapter 2.1 mm x 5.5 mm barrel plug, polarity (-) center
- current draw 7 mA
- dimensions (L x W x H) 124 x 92 x 54 mm
- weight 700 g
