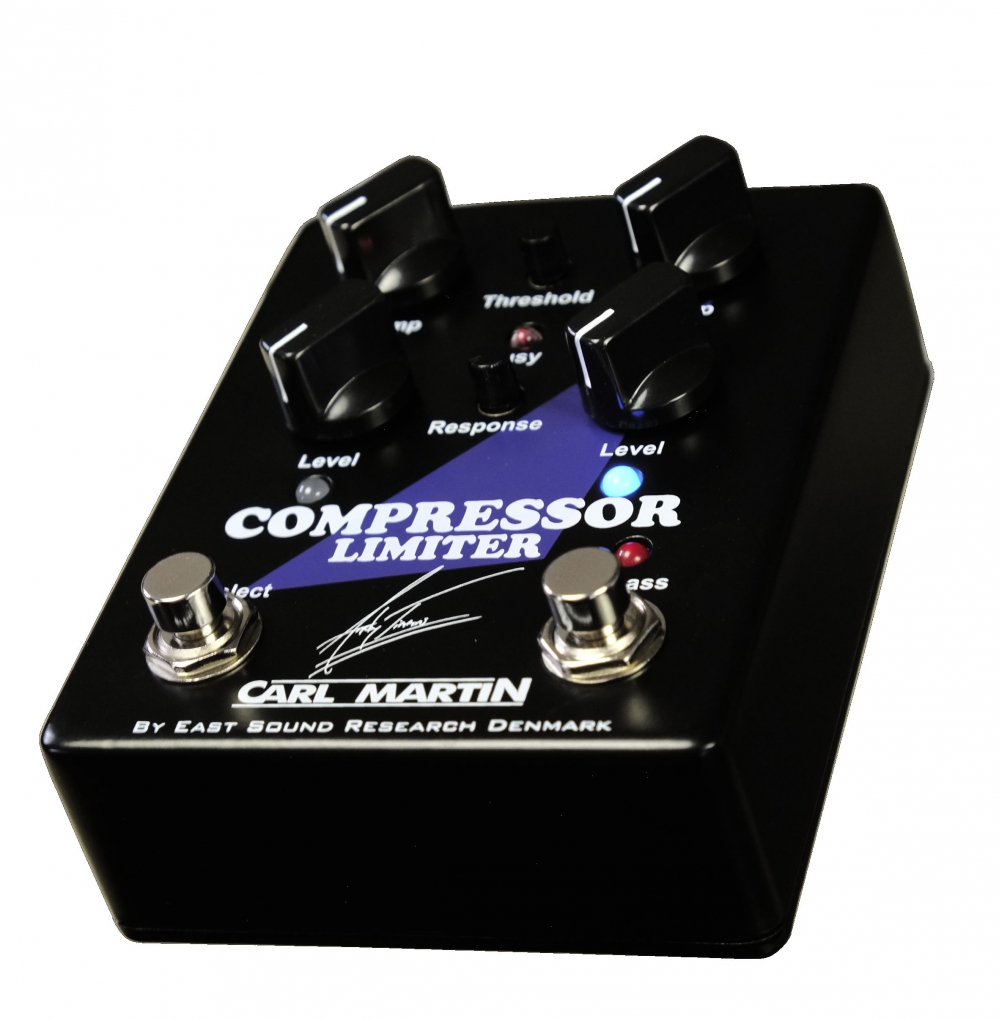

Carl Martin Andy Timmons Signature

The Carl Martin Andy Timmons Signature Compressor/Limiter! Just like the Carl Martin Compressor/Limiter, we believe this unit to be the most musically useful guitar dynamics processor on the market. The Carl Martin Andy Timmons Signature Compressor/Limiter has been developed in corporation with Andy Timmons to create a user-friendly yet versatile compressor/limiter with its two presets.
Andy Timmons, long-time user and fan of the Carl Martin Compressor/Limiter, suggested to Carl to create a Compressor/Limiter with two presets, so that he had a preset for more subtle rhythm parts, and a preset with more hard compression and sustain for other parts as solos without having to take up real-estate on the board for two Compressor/Limiters.
The result is a two-preset option for Compression Rate and Level. In order to save knobs and to be as user-friendly as possible, the Threshold and Response settings are fixed for both presets, leaving the pedal with only six knobs, the Threshold and Response being 6mm miniature knobs.
As a useful extra feature we incorporated a ?" jack for remote switching the presets (Latching).
As something new, the Carl Martin Andy Timmons Signature Compressor/Limiter incorporates the newly developed DC/DC converter circuitry. This enables us to run the pedal with +-12V internally, which is necessary in order to maintain the same sonic quality and headroom as on the "old" Compressor/Limiter using a regular 9V DC 200mA power supply.

- Andy Timmons signature compressor / limiter effects pedal
- true bypass
- 2 identical independent channels
- controls for Comp 1, Comp 2, Level 1, Level 2, Threshold and Response
- Bypass footswitch
- Select footswitch
- status LED
- 6.3 mm mono IN/OUT jack
- 6.3 mm TRS remote footswitch input
- metal housing
- DC/DC converter circuitry delivers 12 Volts internally
- power supply via 9V DC (Carl Martin Power Jack) adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
- battery operation not supported
- current draw 130 mA
- dimension (L x W x H) 120 x 95 x 56 mm
- weight 420 g
