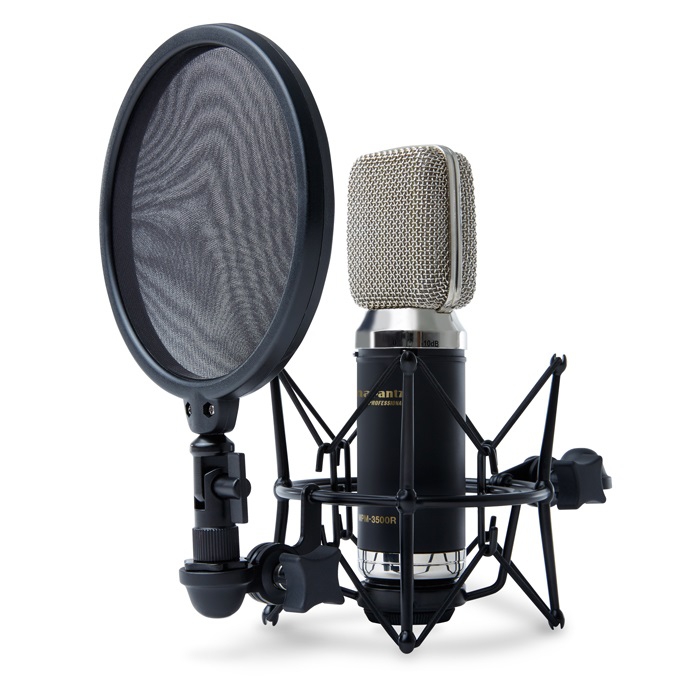

Marantz MPM-3500R

Marantz MPM-3500R

The MPM-3500R is a high-quality ribbon microphone that faithfully captures every sound from the subtle nuances of stringed instruments to rock vocals and percussion. Superbly designed and crafted with high-grade components, the result is a durable microphone with high sensitivity, low noise and wide dynamic range. Its dipole (figure-eight) pickup pattern enables it to be placed between instruments and capture both equally.

The MPM-3500R’s low-mass ribbon pick-up diaphragm is specially designed to resolve the extremely subtle details often missed by conventional microphones, yet it remains warm-sounding and natural—never harsh or strident—resulting in a particularly vibrant, lifelike recording.

Features:

• Low-mass ribbon diaphragm
• Polar Pattern: Dipole (Figure-of-eight )
• Frequency Response: 20–20kHz ±3dB
• Low-frequency attenuation switch
• Sensitivity: -34dB ±2dB
• Output Impedance: 200Ω
• Max SPL: 135dB
• S/N Ratio: 79dB
• Phantom Power Requirement: 48VDC
• Integrated pop filter and shock mount

Specifications:

• Element: Ribbon
• Polar pattern: Dipole (figure-eight)
• Frequency response: 20–20,000 Hz
• Sensitivity: -34dB ±2dB (0dB=1V/Pa @ 1kHz)
• Output: 200Ω ±30% (@ 1kHz)
• Load: >1kΩ
• Self noise: 15dBA
• Max. SPL: 135dB (THD <1% @ 1kHz)
• Signal to Noise ratio: 79dB
• Phantom power requirement: 48VDC, 3mA
• Switch Controls
• Low frequency attenuation
• -10dB pad
• Dimensions: 8.07" x 1.97" x 2.09" (205 x 50 x 58mm)
• Weight: 1.08lbs (490g)
