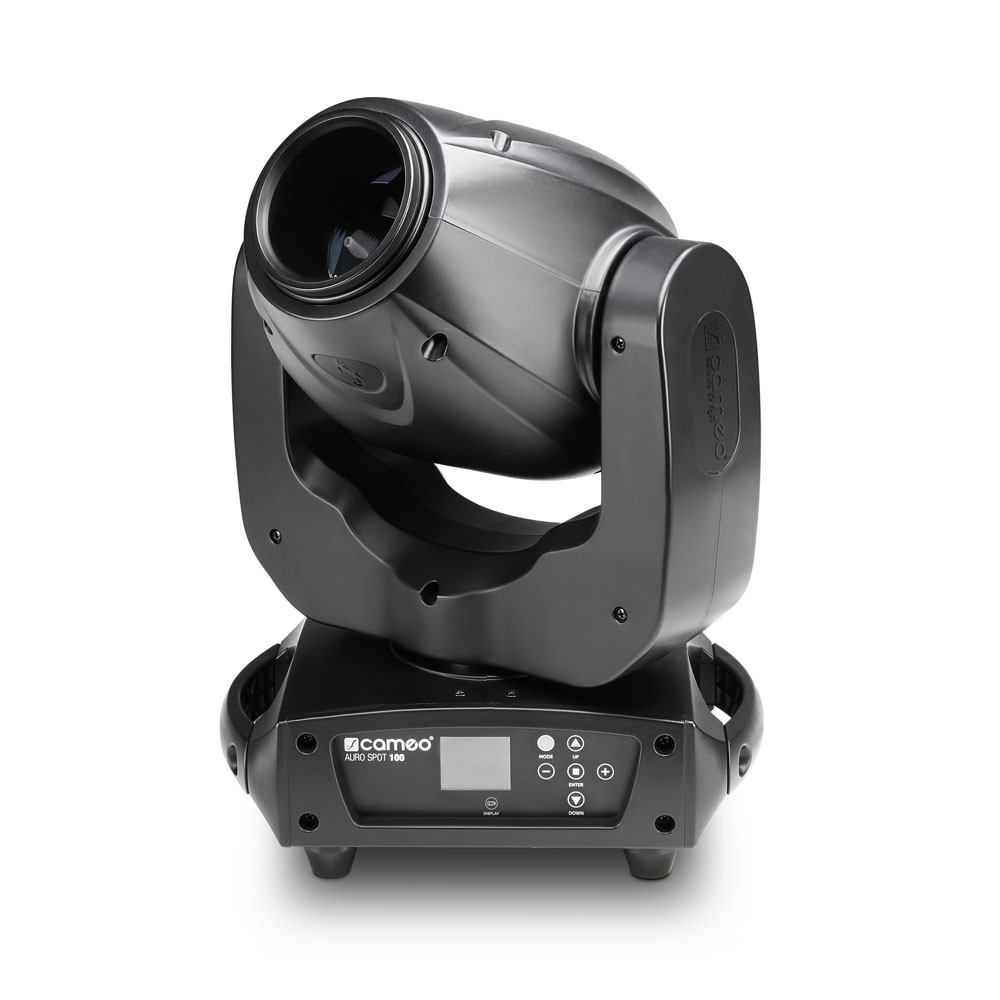

Cameo CLAS100 AURO SPOT 100 Moving Head 60W LED

Cameo CLAS100 AURO SPOT 100 Moving Head 60W LED

The Cameo AURO SPOT 100 is an RDM enabled ultra bright moving head with 16-bit resolution, 630° pan and 235° tilt movement and high speed 3-phase motors. It is powered by a single 60 watt LED and sports 8 intense colours plus white and split colours, 6 replaceable gobos and a rotating 3-facet prism for awesome effects.

The AURO SPOT 100 features 5-channel, 13-channel, 22-channel DMX control modes, auto run programs and sound activation as well as master, slave and standalone capabilities. Functions include a choice of 4 smooth dimming curves, shake effects and a 0 - 20 Hz cycle strobe.

The heavy-duty housing integrates a temperature controlled low noise fan, 3-pin and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and a 4-button LCD control display. The multi-voltage AURO® SPOT 100 operates on 100 - 240 V AC.

Features:

• RDM enabled moving head
• 90,000 lx @ 1 m
• High speed 3-phase motors
• 16-bit resolution
• Motor Focus
• Automated positioning correction
• Battery powered display for offline operation
• 8 intense colours, white and split colours
• 6 gobos + open
• All gobos replaceable with metal or glass gobos
• Rotating 3-facet prism
• Smooth dimming from 100 - 0% with 4 selectable curves
• 0 - 20 Hz strobe
• Temperature controlled low noise fan
• Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O

Specifications:

• Product type: LED Moving Lights
• Type: Moving Head
• Colour spectrum: Split colours, white, 8-channel multi colour
• Number of LEDs: 1
• Colour temperature: 10000K
• LED type: 60 W
• Dispersion: (manually adjustable) 12° - 16°
• Number of gobos: 6 + open
• Gobo Size: Outer diameter 22.90 mm, Image diameter: 19.50 mmmm
• DMX input: XLR 5-pin male, XLR 3-pin male
• DMX output: XLR 5-pin female, XLR 3-pin female
• DMX mode: 13-channel, 22-channel, 5-channel
• DMX Functions: PAN, Dimmer Curve, Gobo wheel, TILT, Dimmer, Gobo Shake, auto programs
• PAN movement: 630°
• TILT movement: 235°
• High Speed Strobe: 1 - 20Hz
• Standalone modes: sound control, Show, Auto run
• Controls: Enter, +, Value Down, mode, -, Value Up
• Indicators: colour LC display
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Power consumption: 175W
• Power connector: Neutrik powerCON IN / OUT
• Housing material: metal, ABS plastic
• Cabinet colour: Black
• Cooling: silent, temperature controlled fan
• Illuminance: 90000lx @ 1m
• Luminous flux: 2100lm
• Width: 285mm
• Height: 480mm
• Depth: 180mm
• Weight: 8.8kg
