Cameo CLAS300 AURO SPOT 300 Moving Head 180W LED

Cameo CLAS300 AURO SPOT 300 Moving Head 180W LED

The Cameo AURO SPOT 300 is an RDM-capable ultra bright moving head with 16-bit resolution, 630° pan and 235° tilt movement and high speed 3-phase motors. It is powered by a single 180 watt LED and sports 8 intense colors plus white and split colors. A rotating 3-facet prism, 8 fixed and 6 replaceable rotating gobos provide a wide variety of awesome animated effects.

The AURO SPOT 300 features 5-channel, 15-channel, 24-channel DMX control modes, automated programs and sound activation as well as master, slave and standalone capabilities. Functions include a choice of 4 smooth dimming curves, gobo shake and a high-speed 0 - 20 Hz cycle strobe.

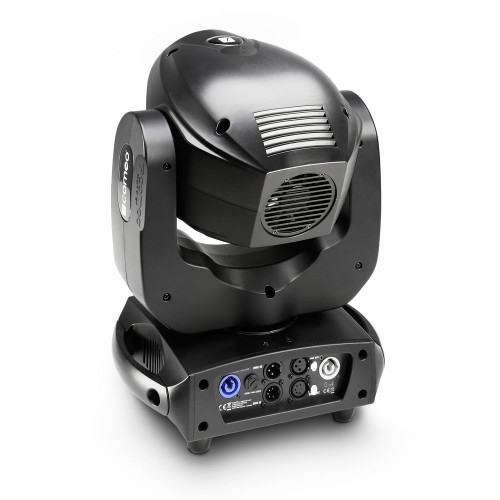

The heavy-duty housing integrates a temperature controlled low noise fan, 3-pin and 5-pin DMX plus Neutrik powerCON inputs and outputs. A battery-powered 6-button display enables convenient offline configuration. The all-professional multi-voltage AURO SPOT 300 operates on 100 - 240 V AC.

Features:

• RDM enabled moving head
• Luminous flux 4900 lm
• High speed 3-phase motors
• 16-bit resolution
• Motor focus
• Automated positioning correction
• Battery powered display for offline configuration
• 8 intense colors, white and split colors
• 2 gobo wheels + open
• 6 rotating and 8 fixed gobos
• Rotating gobos replaceable with metal or glas gobos
• Rotating 3-facet prism
• Smooth dimming from 100 - 0% with 4 selectable curves
• 0 - 20 Hz strobe
• Temperature controlled low noise fan
• Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O

Specifications:

• Type: LED Moving Heads
• Colour spectrum: white, 8-channel multi colour, Split colours
• Number of LEDs: 1
• Colour temperature: 9300K
• LED type: 180 W
• Dispersion: 12 - 16°
• Number of gobos: 14
• Gobo Size: 22,90mm
• DMX input: XLR 3-pin male, XLR 5-pin male
• DMX output: XLR 5-pin female, XLR 3-pin female
• DMX mode: 15-channel, 24-channel, 5-channel
• DMX Functions: PAN, TILT, auto programs, Dimmer, Dimmer Curve, Gobo Shake, Gobo Wheel
• PAN movement: 630°
• TILT movement: 235°
• High Speed Strobe: 1 - 20Hz
• Standalone modes: Show, Auto run, sound control
• Controls: Enter, mode, Value Up, Value Down
• Indicators: colour LC display
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Power consumption: 320W
• Power connector: Neutrik PowerCon
• Housing material: plastic, metal
• Cabinet colour: Black
• Cooling: temperature-controlled fan
• Illuminance: 10250lx @ 5m, 28500lx @ 3m
• Luminous flux: 4900lm
• Width: 285mm
• Height: 480mm
• Depth: 180mm
• Weight: 8.6kg
