JBL ACTIVE-1

JBL M-Patch Active-1

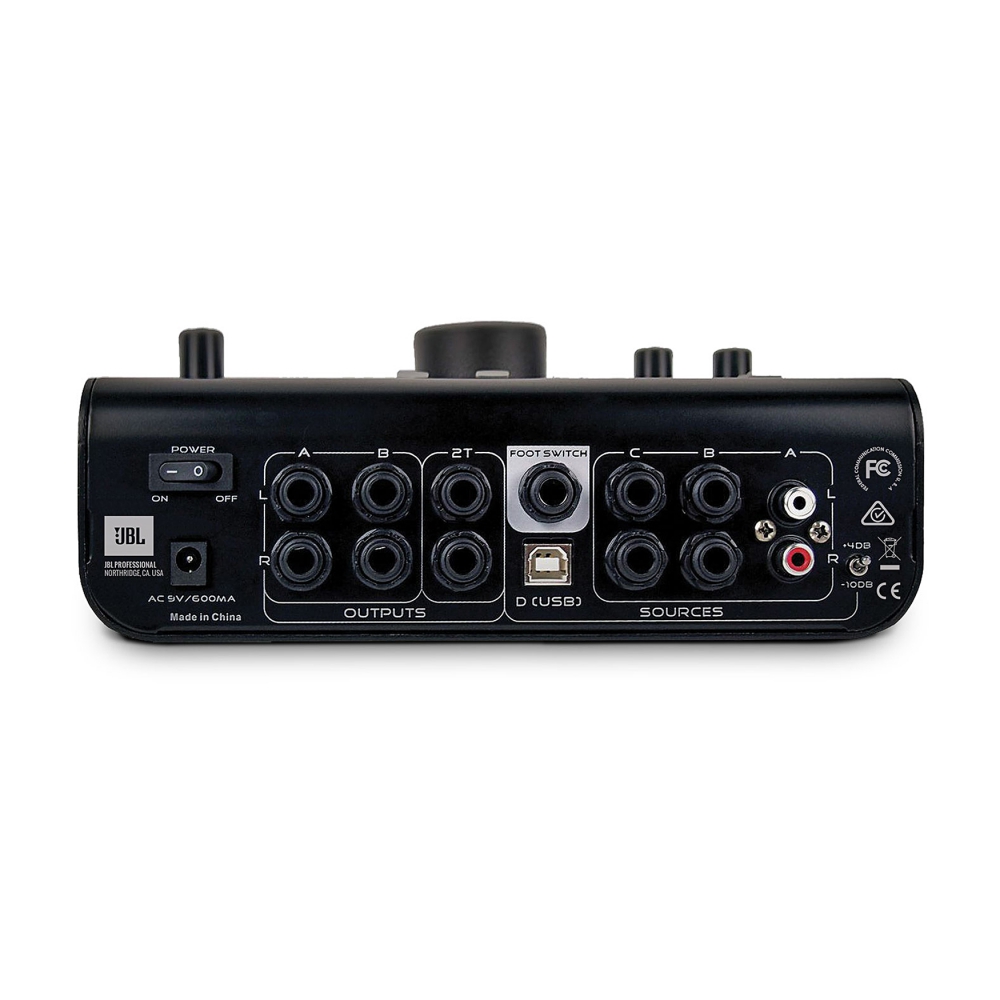

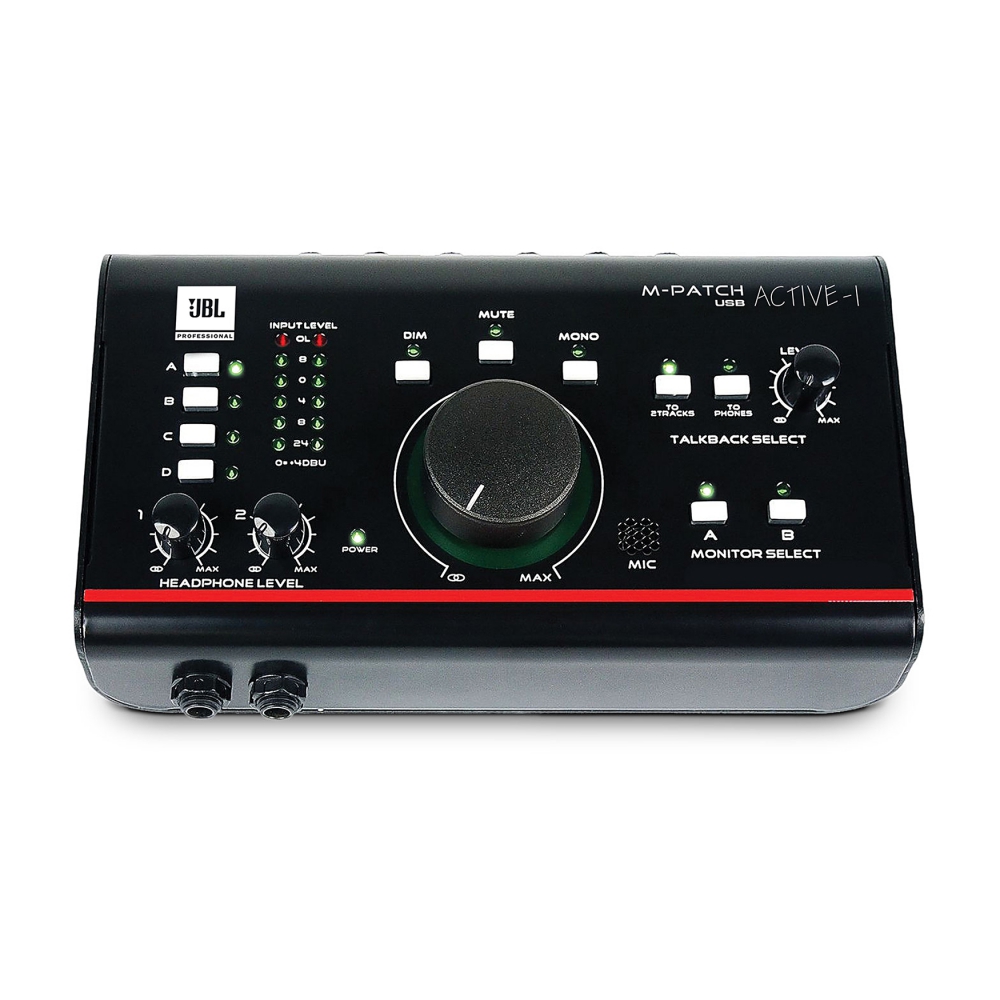

The M-PATCH ACTIVE-1 accommodates four input sources (3 x stereo analog and 1 x USB) and three stereo analog outputs plus USB. In addition to the core functionality of providing seamless A/B switching between input signals and output speaker monitor systems, the ACTIVE-1 delivers a full complement of audio monitoring functions, including precision volume control, mono summing, mute, and dim (ducking). A handy footswitch-activated talk-back function, complete with on-board condenser microphone and selectable routing, has also been integrated, making the ACTIVE-1 the ideal low-cost solution for a broad range of studio production applications.

Designed to provide the lowest-noise operation possible in an active monitor controller, the ACTIVE-1 is ideal for applications where both signal attenuation and boost is needed. In addition to the feature complement found on the PASSIVE-1, the ACTIVE-1 also includes LED level metering and convenient switch-selectable +4dBu/-10dBV input stage operation.

The ACTIVE-1 features on-board USB, allowing for direct digital audio recording and playback when used with a computer DAW. The USB output mirrors the signals appearing at the analog 2 Track outputs, while the computer’s L/R output feeds the USB in.

Housed in a sturdy metal chassis and fitted with a durable array of switches and secure connectors, the ACTIVE-1 is built to provide years of worry-free operation.

Features:

• 4 inputs, 4 outputs
• USB Input and Output
• 2 headphone amps
• Footswitch-Controlled Talkback
• Built-in Talkback Mic
• Mono summing
• Dim switch
• A/B Speaker Switching
• Precision Rotary Attenuator
• Level meters

Specifications:

• Frequency Range: Line Level Inputs and Outputs +0.5: -1dB 10hz to 30kHz
• Noise: Monitor A B, Studio Outputs, 2-Track: -92dBu Typical
• Outputs Line Level (-10dB): -10dBu/+8dBu (NOM/MAX)
• Line Level (+4dB): +4dBu/+22dBu (NOM/MAX)
• Dynamic Range: Line Inputs to outputs: 114dB minimum
• Crosstalk Mute/Level OFF: 92dB @1kHz
• Dim Switch: -20dB
• Master Volume studio output gain: 34dB max
• USB Channels: 2
• Drivers: Legacy type and ASIO
• Compatibility: All current USB Audio systems
