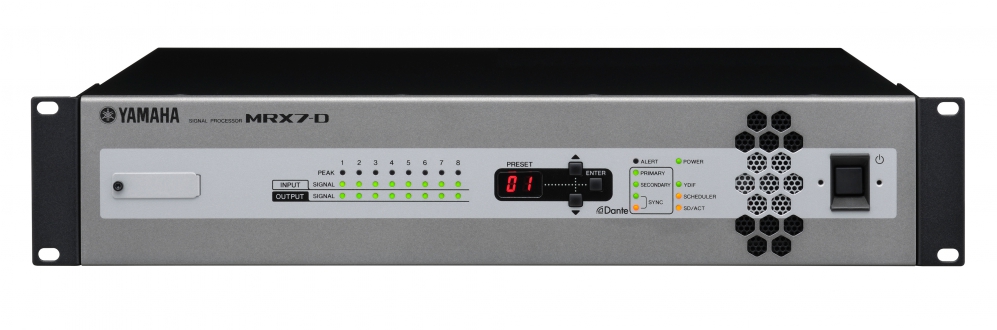

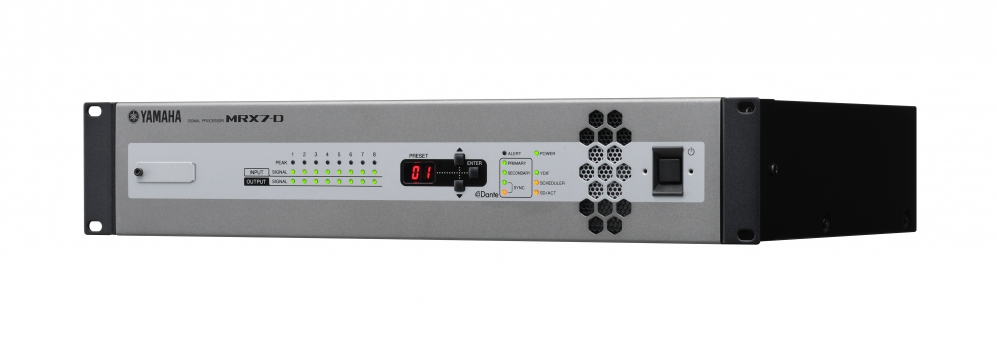

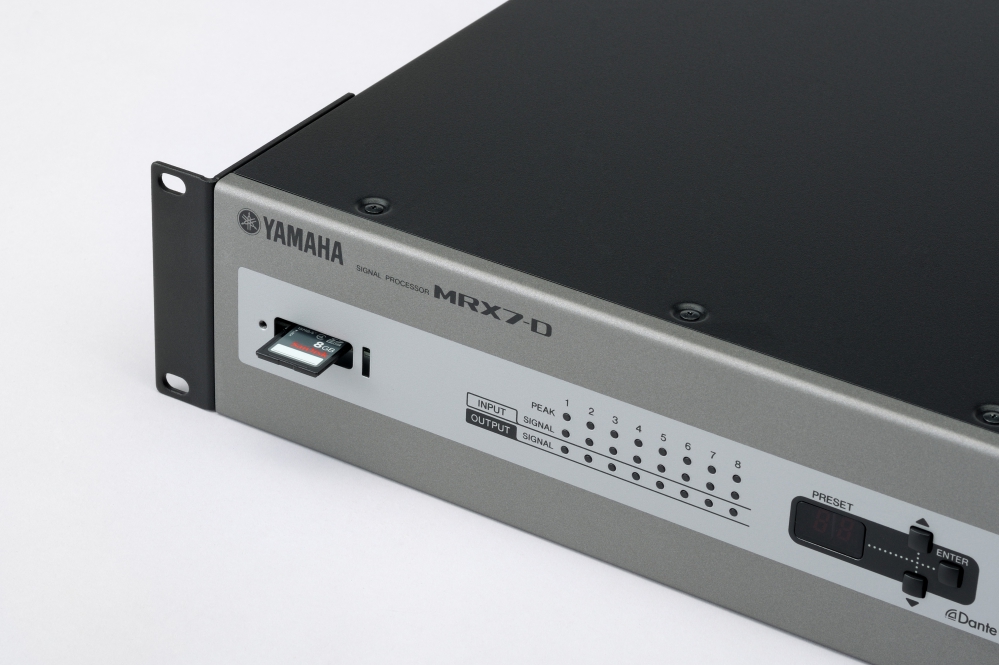

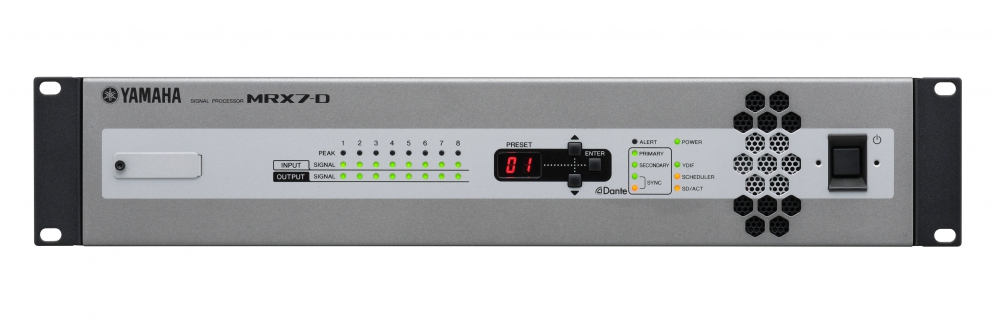

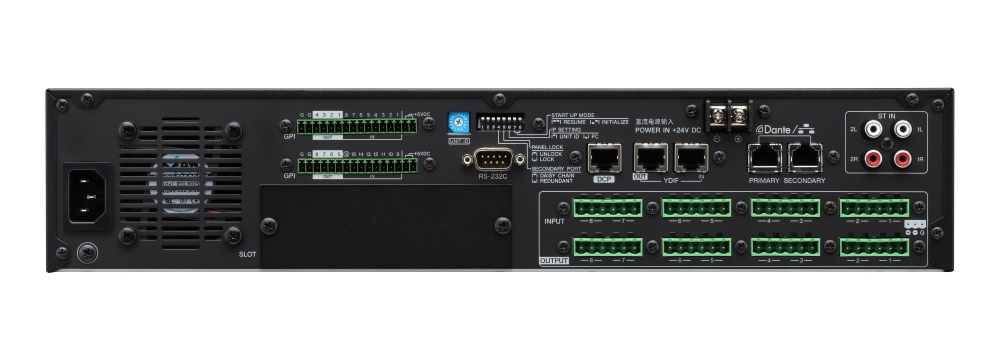

Yamaha MRX7D

Yamaha MRX7D

Sound system requirements for corporate conference rooms, educational facilities, shopping malls, and a variety of other environments are becoming increasingly large and complex. The MRX7-D offers outstanding control efficiency and flexibility for a broad spectrum of audio installations.

Specifications:

• Sampling frequency rate: Internal 48kHz/44.1kHz
• Signal delay: 1.9 msec (AD-DA @48kHz)
• Total harmonic distortion: “0.05% (+4dBu, Gain:-6dB, 48kHz) 0.1% (+4dBu, Gain: +66dB, 48kHz)” (Measured with a 18dB/Oct filter @80kHz)
• Frequency response: 20Hz to 20kHz: max:+0.5dB, min:-1.5dB
• Dynamic range: 107dB (typ. Gain:-6dB)
• Crosstalk: -100dB (@1kHz)
• Heat dissipation: 55.9kcal/h max
• Power requirements: AC100V-240V 50Hz/60Hz
• Power consumption: 65W
• Dimensions: 480mm x 88mm x 366mm
• Net weight: 6.5kg
