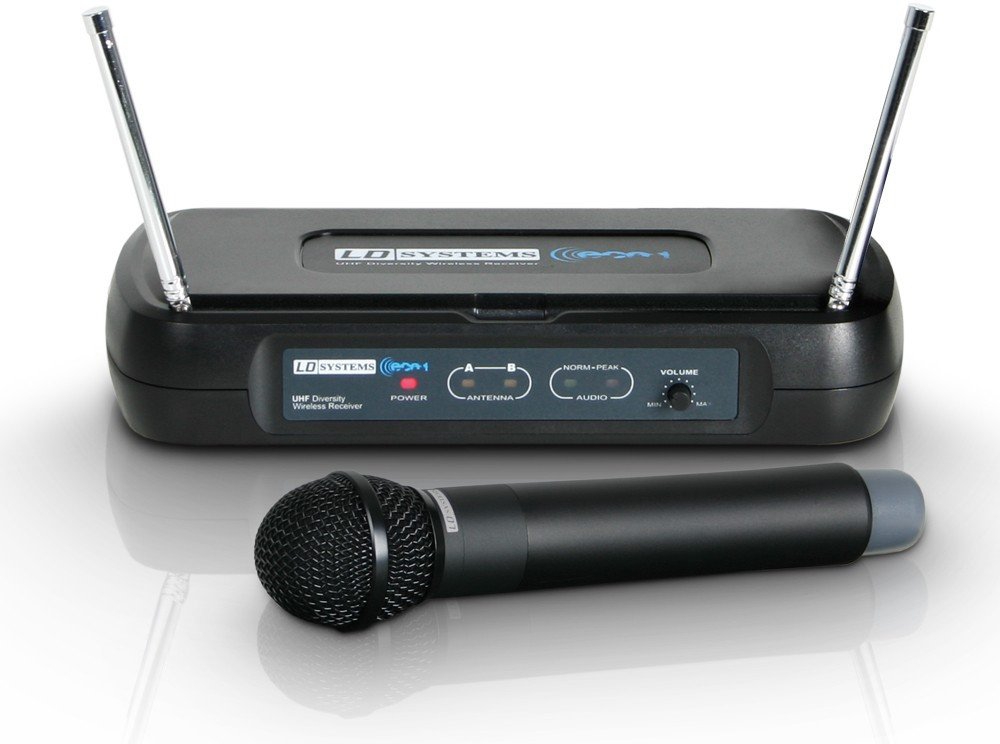

LD Systems WS ECO2 HHD2

LD Systems WS ECO2 HHD2

LD Systems ECO Sets are the perfect introduction to wireless audio transmission: All components guarantee optimal audio delivery via professional outputs. The extensive features of the LD WS ECO Series Sets are remarkable in this price category.
The frequency band of 863 - 865 MHz permits operation in most EU countries with no registration or licensing required.

• 1 channel UHF PLL Diversity Wireless System
• Handheld Version
• Removable antennas and optional 19" Rack Mount Kit
• Handheld dynamic mic with soft-touch surface and Sensitivity switch
• Great operation range (50 m open field)
• Long battery life
• 1 fixed frequency: 863.900 MHz
• 12 month warranty

Specifications:

LDWSECO2MD2 - Dynamic Handheld Microphone
• Product type: Wireless Microphone System Accessories
• Type: Microphones
• Channels: 1
• Microphone type: dynamic
• Directivity: cardioid
• Frequency response: 60Hz
• Rated HF output power: 10 mW
• Controls: transmission power Hi / Low, gain, Power
• Indicators: On / Low Battery
• Operating voltage: 2 x AA battery
• Operating time: >10 h (with alkaline batteries)
• Length: 250mm
• Diameter: 53mm
• Weight: 0.28kg
• Other features: incl. batteries

LDWSECO2R2 - Receiver
• Product type: Wireless Microphone System Accessories
• Type: Receivers
• Modulation Type: FM
• Channels: 1
• Antenna inputs: 2
• Antenna connector: fixed to housing
• Frequency response: 60Hz
• Noise reduction: squelch
• Signal-to-noise ratio: > 105dB

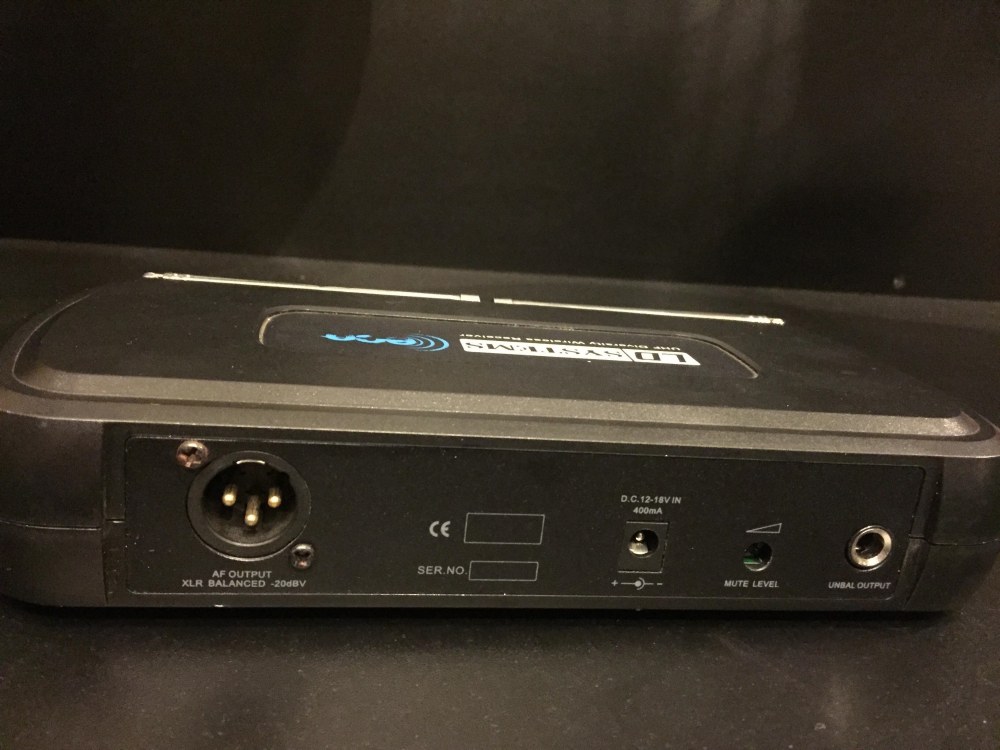

• Audio output, balanced: XLR
• Audio output, unbalanced: 6.3 mm Jack
• Controls: Mute Level (Squelch), volume
• Indicators: antenna A/B, Power, Audio signal (Norm / Peak)
• Operating voltage: 12 - 18 V DC, 400 mA, External Power Supply
• Width: 235mm
• Height: 44mm
• Depth: 118mm
• Weight: 0.6kg
• Accessories (included): batteries, power supply
