Audio Technica AT-8024 mikrofón

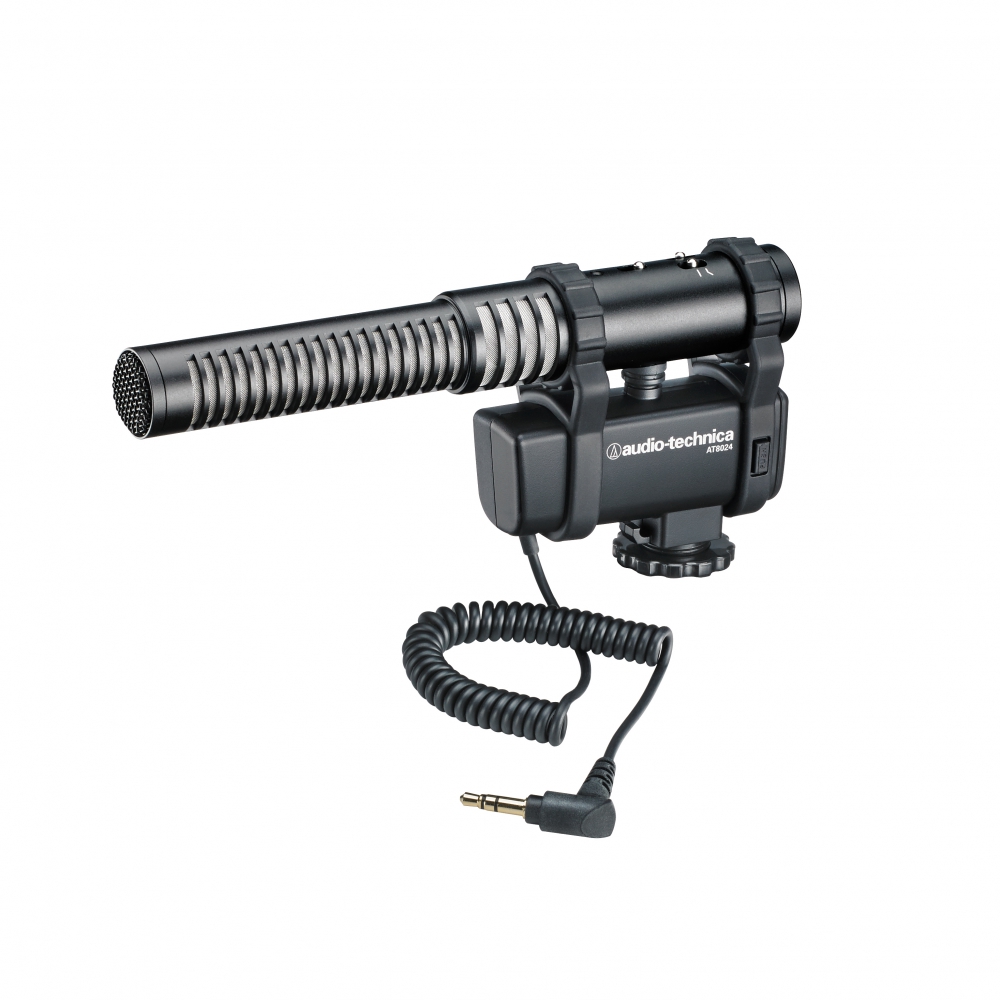

Audio Technica AT-8024

With its lightweight yet feature-rich design, the AT8024 Stereo/Mono Camera-Mount Microphone offers a simple, powerful solution for capturing high-resolution audio for video. Selectable line-cardioid mono and internally matrixed mid-side stereo modes provide the flexibility to focus the recording on a single sound source or to widen the field for outstanding sonic realism. In either mode, the AT8024 delivers audio that is dramatically better than that supplied by the camera’s internal microphone.

Features:

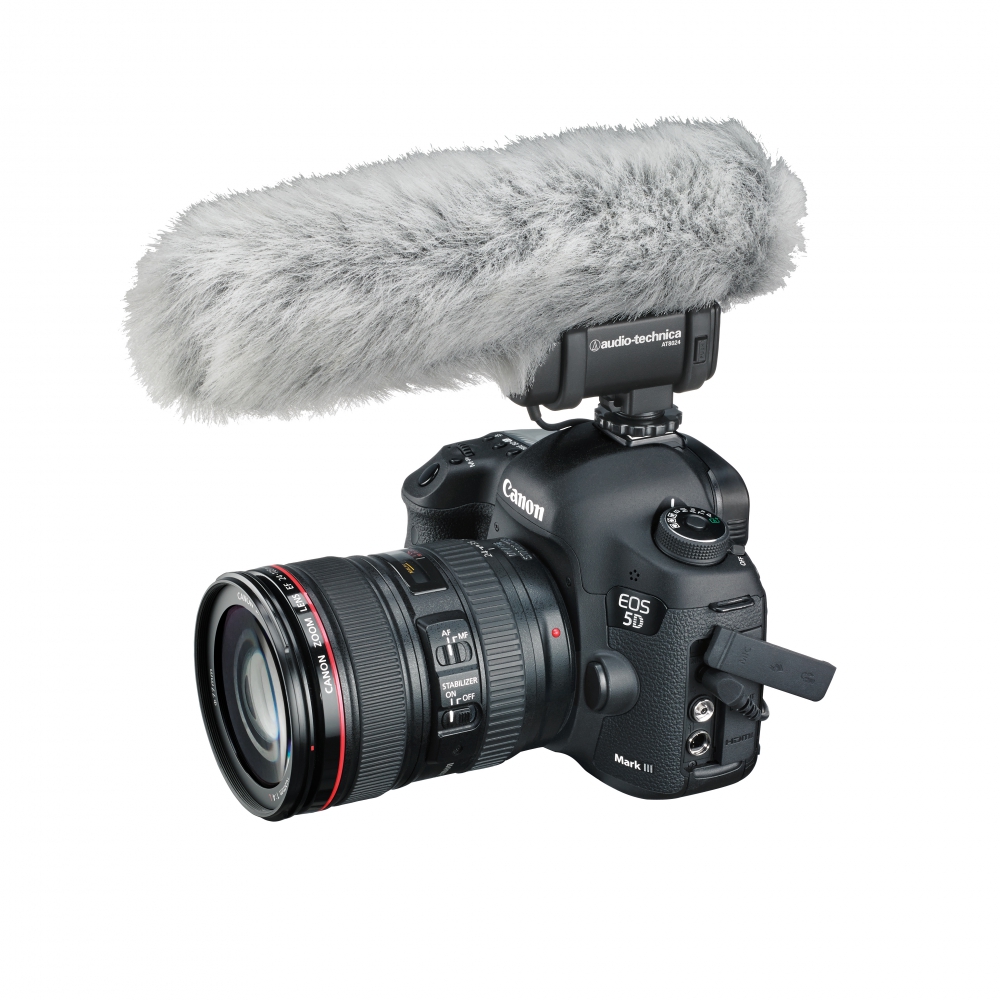

• Designed for use with DSLR and other video cameras, delivering dramatically better sound quality than the camera’s internal microphone
• Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment
• Handles loud sound sources without distortion
• Three-position adjustable attenuator and switchable low-frequency roll-off
• Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise
• Compact, lightweight design with integral shoe mount
• Red/green LED power indicator

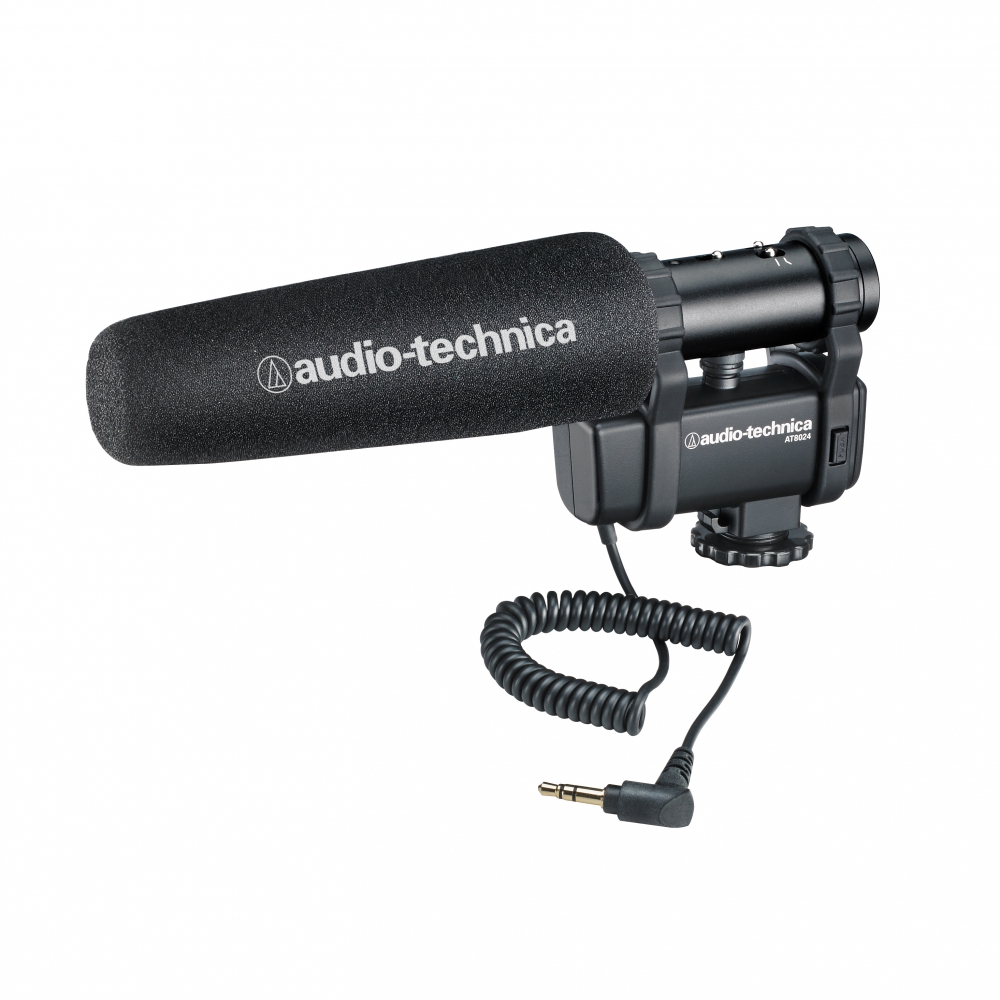

• Includes windscreen, fuzzy windscreen and AA battery

Specifications:

• Elements Fixed-charge back plate, permanently polarized condenser
• Polar patterns: Line-cardioid, LR stereo
• Frequency response: 40-15,000 Hz
• Low frequency roll-off: 80 Hz, 12 dB/octave
• Open circuit sensitivity: –37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo)
• Impedance: 50 ohms
• Maximum input sound level: 128 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic range (typical): Mono: 106 dB, 1 kHz at Max SPL; Stereo: 104 dB, 1 kHz at Max SPL
• Signal-to-noise ratio: Mono: 72 dB, 1 kHz at 1 Pa; Stereo: 70 dB, 1 kHz at 1 Pa
• Battery type: Type: One 1.5V AA (included); Life: 80 hours, typical
• Switches: Mono, M-S Stereo; Three-position attenuator; Flat, roll-off
• Weight: 114 g (4.0 oz)
• Dimensions: 172.0 mm (6.77") long, 24.0 mm (0.94") maximum body diameter
• Output connector: 3.5 mm stereo mini-plug on cable
