Yamaha CBR12 pasívny reproduktor

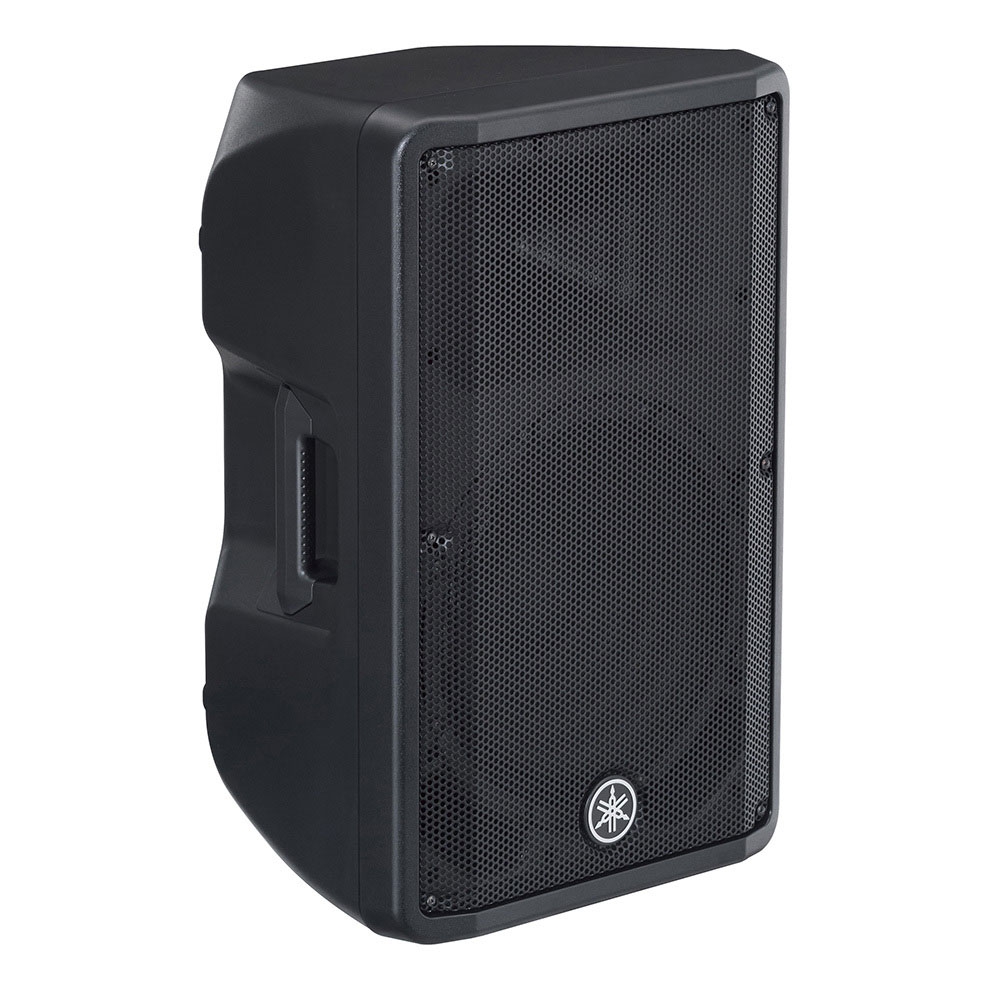

Yamaha CBR12

The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

SPECIFICATIONS

• Speaker type: 2-way Speaker, Bass-reflex Type
• Frequency range (-10dB): 48 Hz - 20 kHz
• Nominal coverage
- H: 90°
- V: 60°
• Components
- LF: 12" Cone, 2" Voice Coil (Ferrite Magnet)
- HF: 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
• Crossover: 2.1 kHz
• Power rating NOISE: 175W
• PGM: 350W
• PEAK: 700W
• Nominal impedance: 8Ω
• SPL: Sensitivity (1W; 1m on axis) 96dB SPL
• Peak (Calculated): 125 dB SPL
• I/O connectors: 1/4" Phone x 1, speakON NL4MP x 1
• Cabinet material: Plastic
• Finish: Black
• Handle: Side x 2
• Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
• Pole socket: Φ35 mm Bottom x 1
• Accessories: Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400

Dimensions
• W: 376mm (14.8")
• H: 601mm (23.7")
• D: 348mm (13.7")
• Net weight: 13.9 kg (30.6 lbs)
