Shure BLX14/SM35 bezdrôtový systém

Shure BLX14/SM35

The BLX14R/SM35 Headworn Wireless System is part of the BLX wireless systems family.
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

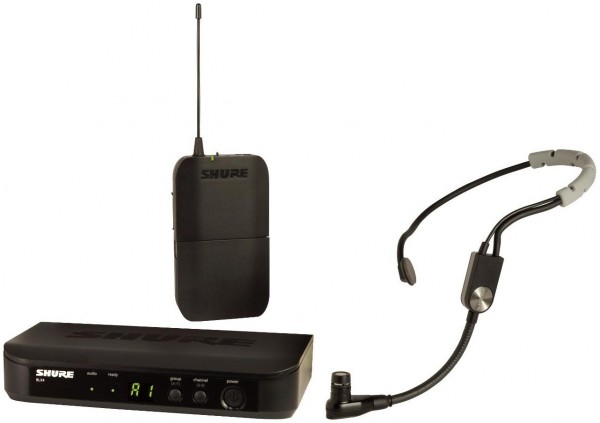

Includes BLX4R rack mount receiver, BLX1 bodypack transmitter, SM35 headset microphone, power supply, clothing clip, windscreens, rack mount hardware, and user guide.

Specifications:

BLX1 bodypack:
The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. For use with BLX® Wireless Systems.

• Gain Adjustment Range: 26 dB
• Input Impedance: 1 MΩ
• RF Transmitter Output: 10 mW, typical varies by region
• Dimensions: 110 mm X 64 mm X 21 mm H x W x D
• Weight: 75 g (2.6 oz.), without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)

BLX4R receiver:
• Output Impedance:
• XLR connector: 200 Ω
• 6.35 mm (1/4") connector: 50 Ω
• Audio Output Level: Ref. ±33 kHz deviation with 1 kHz tone
• XLR connector –20.5 dBV (into 100 kΩ load) :6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50 dB, typical
• Dimensions: 50 mm X 198 mm X 163 mm H x W x D
• Weight: without antennas 998 g (2.2 lb.)
• Housing: Molded ABS, steel
• Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)

SM35 microphone:
Performance Headset Condenser Microphone
Durable cardioid condenser microphone in a comfortable headset for hands-free vocal performance. Ideal for multi-instrumentalists.

• Type: Electret Condenser
• Frequency Response: 40–20,000 Hz
• Polar Pattern: Cardioid
