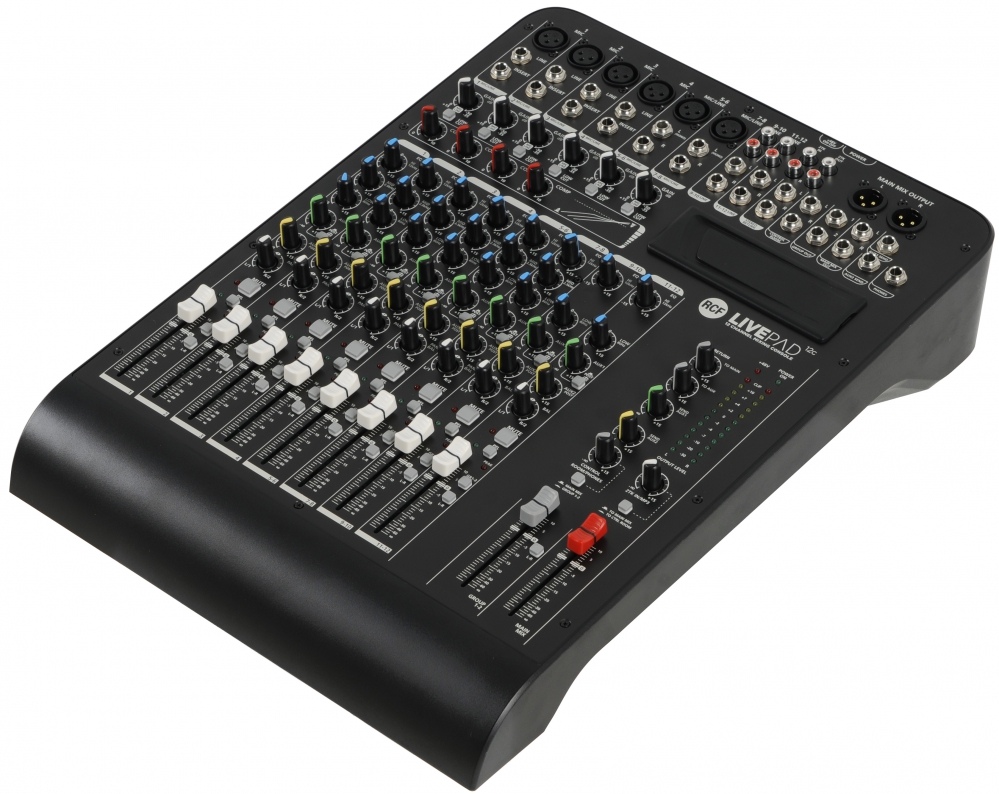

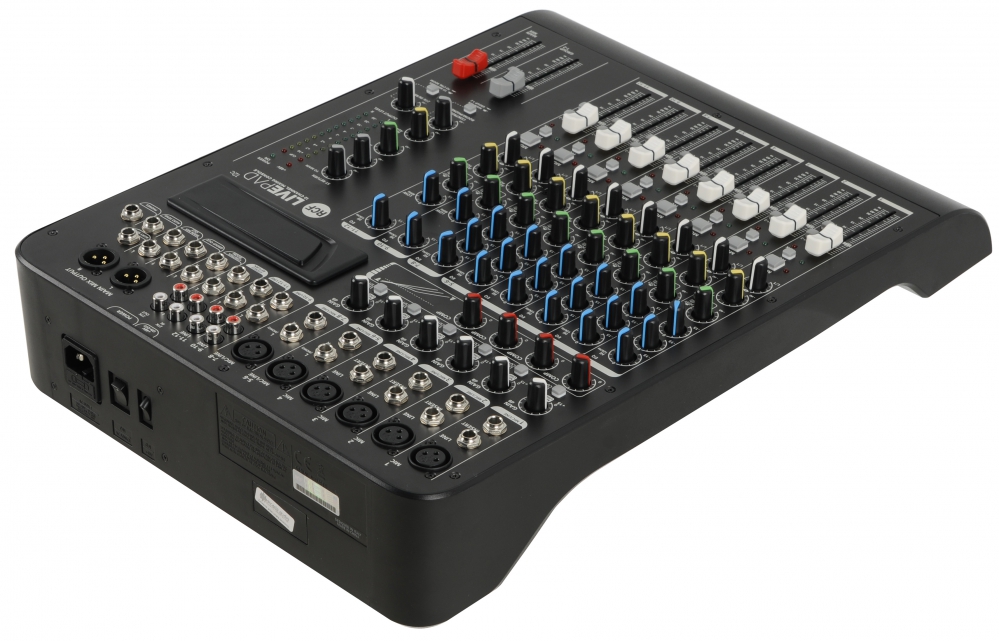

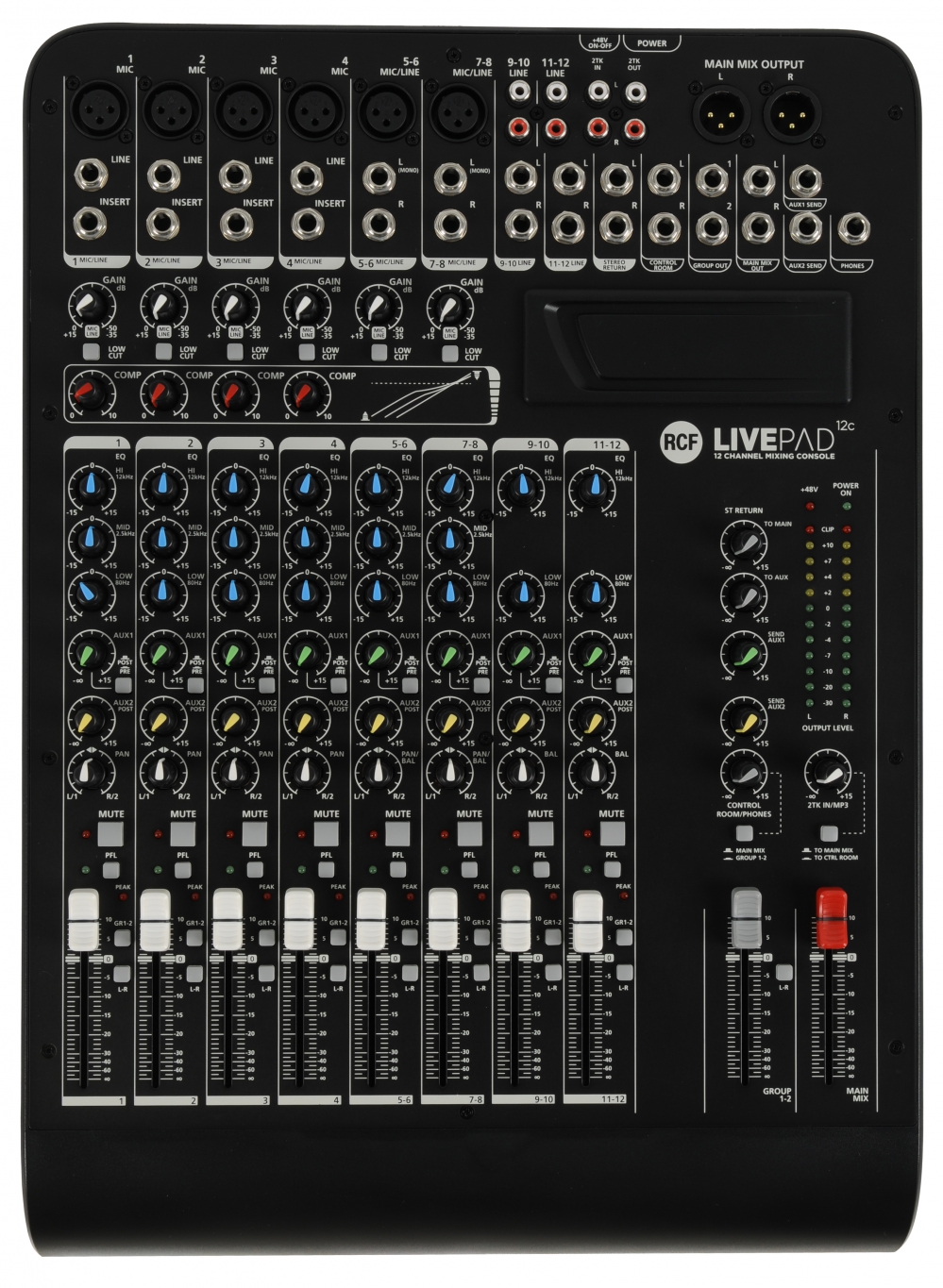

RCF LivePad 12C analógový mixér

RCF LivePad 12C

With six transparent sound mic inputs, four stereo line inputs and the 2tk in/out, L-PAD 12C is the ideal tool for small band gigs, complex conferences, corporate events and all situations where it is necessary to handle several signals. Four single-control compressors on mic channels help to handle even the more dynamic complex signals. Two Auxiliaries sends allows control of a small stage with the appropriate wedge monitors. The super versatile L-PAD slot permits the optional cards L-PAD MP3 PLAYER, PLAYER/RECORDER or BLUETOOTH CONNECTION cards to be inserted for even more flexible use. Thanks to the accurate Italian design L-PAD 12C is easy to grab, transport and handle in all live event situations.

Specifications:

INPUTS:
• 6 MIC XLR/line inputs with ¼ inch jack (1, 2, 3, 4 mono lines with 5-6, 7-8 stereo line inserts)
• 4 compressors (Ch. 1 - 4)
• 2 stereo line inputs with ¼ inch jack (3-4, 5-6)
• 2 stereo line inputs with ¼ inch jack or RCA
• 1 2TK input with RCA
• 1 stereo return with ¼ inch jack

OUTPUTS:
• 1 2TK output with RCA
• 1 MAIN MIX stereo output with balanced XLR and ¼ inch jack
• 1 CONTROL ROOM stereo output with ¼ inch jack
• 1 PHONES stereo output with ¼ inch jack
• 2 AUX SEND outputs with ¼ inch jack

OTHER FEATURES:
• Three-band EQ on mono channels
• Dual-band EQ on stereo channels 9-10, 11-12
• 2 AUX SEND
• Optional card slot: MP3 player card, MP3 player/recorder card (with USB 1.1 port for USB flash drive up to 32 GB), Bluetooth connection card
• Internal PSU 100 V-240 V, 50-60 Hz, 40 W

PHYSICAL:
• Dimensions: L = 480 mm, W = 340 mm, H = 100 mm
• Weight: 3.830 kg
