Karsect WT-1 vysielač

Karsect WT-1

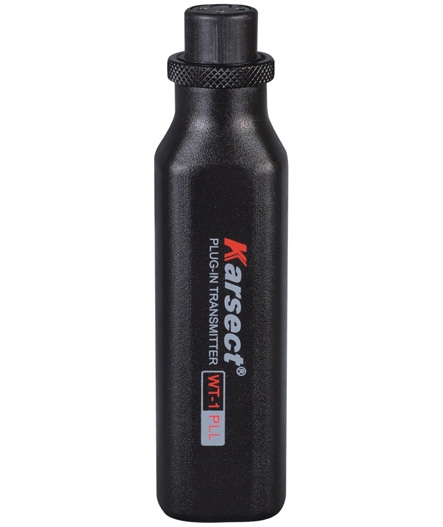

The WT-1 plug-in transmitter is probably the most cost efficient way to upgrade a hardwire microphone for wireless use.
All you have to do is disconnect the microphone cable and plug the transmitter into the XLR connector on the microphone. The plug-in transmitter with its small and light glass fiber reinforced case will add less weight to the microphone than the cable did.
An input gain control lets you match the WT-1 to the microphone output level.
A noiseless on/off switch allows you to mute any microphone with no on/off switch. Replaceable color code elements
allow easy identification of the various microphone channels in any multichannel concert setup.

Features:

• Professional XLR connector match with all dynamic microphones
• Ultra-light, glass fiber reinforced miniature case
• Integrated charging contacts
• Extremely low operating cost

Specifications:

• Frequency Range: 460-970MHz
• RF Output: 10dBm
• Modulation Type: FM
• Max Deviation: 68KHz
• Spurious Emission: >55dBc
• Nominal Current Drain:<100mA
• Power Requirements: 1x1.5V AA
• Dimensions: 11.2x2.9x2.8cm
