Neutrik NADITBNC-FX adaptér

Názov:	Neutrik NADITBNC-FX adaptér
Výrobca:	Neutrik
Id tovaru / Kód:	148923 / ZŁ-NADITBNC-FX
Množstvo na sklade:	0 pcs.
Pozor! Cena za tento tovar sa mohla zmeniť. Aktuálnu cenu a čakaciu dobu si môžete dohodnúť s opatrovníkom výrobku.
Iné označenie výrobku:	Neutrik NADITBNC-FX Digital Impedance Transformer Adapter, Neutrik NADITBNC-FX, Neutrik NADITBNC FX, Neutrik NADITBNCFX, NADITBNC-FX, NADITBNC FX, NADITBNCFX
Správca výrobku:	Marcin Zdziabek, tel. +42 0234261768, email: [email protected]

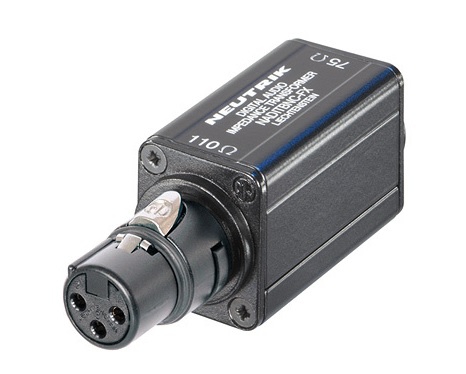

Neutrik NADITBNC-FX

The Neutrik NADITBNC-FX Digital Impedance Transformer Adapter is a cost-effective impedance matching adapter that allows long cable runs for digital audio signals via low attenuation coax lines. The adapter features a female XLR cable end 110 Ω input to female BNC 75 Ω output.

Features:

• Female XLR cable end 110 Ω input
• Female BNC 75 Ω output
• Cost-effective impedance matching adapters
• Allows long cable runs for digital audio signals via low attenuation coax lines
• Match balanced (110 Ω) to coaxial lines (75 Ω)
• Pre-wired in black anodized aluminum extrusions for increased durability
• Simple use, passive unit

Specifications:

• Connection Type: Adapter
• Gender: Female
• Frequency Range 0.1 to 6 MHz
• Rated Voltage: ≤5 Vpp / 250 mW
• VSWR: <1.1
• Return Loss: >26.4 dB
• Insertion Loss: <0.3 dB @ 0.1 MHz to 10 MHz
