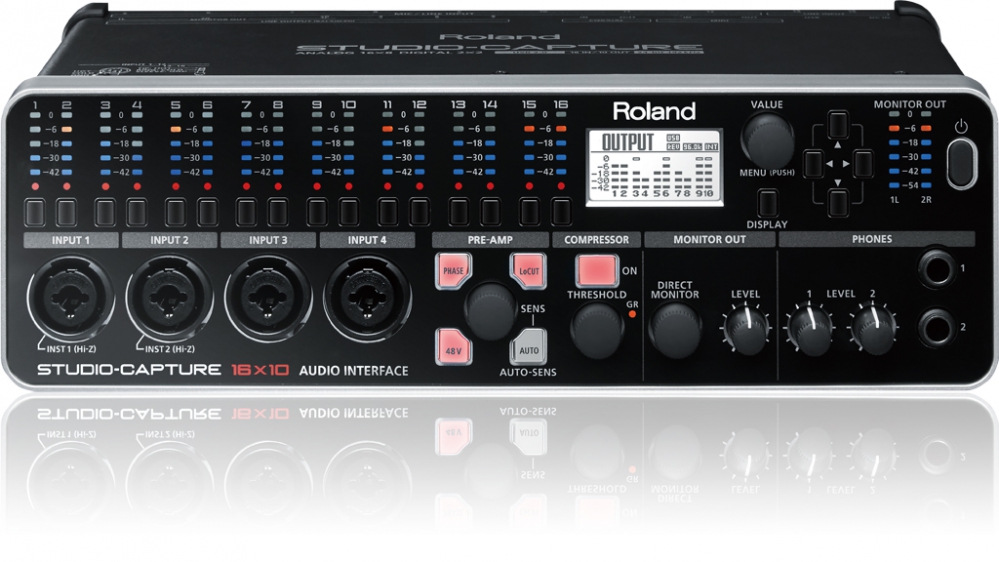

Roland UA-1610 Studio Capture

Roland UA-1610 Studio Capture

The STUDIO-CAPTURE by Roland packs twelve impressively pristine VS PREAMPs and exceptional 24-bit/192kHz AD/DA conversion into a rackmountable USB 2.0 interface. If you demand high channel count and superb audio quality from a multichannel interface built with on-the-go convenience in mind, then the STUDIO-CAPTURE is the perfect companion to your laptop Mac or PC. It has 40-bit DSP-driven cue mixing onboard that lets you set up four independent stereo mixes quickly and easily. And thanks to Roland's extreme low-latency driver, you can use the STUDIO-CAPTURE efficiently with almost any Mac of PC DAW.

Specifications:

• High-performance USB 2.0 audio interface for studio or in the field production
• 16 audio inputs and 10 audio outputs, including 12 premium mic preamps (VS PREAMP)
• VS STREAMING provides ultra-stable, low-latencyjną performance drivers for Windows and Mac
• AUTO-SENS intelligently sets optimal input levels for all preamps
• Individual measures of levels of input / output and input channel buttons
• Four independent software-controlled monitor mixes
• monitor output XLR direct display, dual headphone outputs with independent level knobs on the panel
• Coaxial digital I / O; MIDI I / O with FPT
• Expand the number of I / O using two-CAPTURE STUDIO together, both controlled single controller
• Ears 2U rack mounting kit
• Frequency Response
- 192.0 kHz 20 Hz to 60 kHz (+ 0 / -2 dB) 20 Hz to 90 kHz (+ 0 / -8 dB)
- 96.0 kHz 20 Hz to 40 kHz (+ 0 / -2 dB)
- 48.0 kHz 20 Hz to 22 kHz (+ 0 / -2 dB)
- 44.1 kHz 20 Hz to 20 kHz (+ 0 / -2 dB)
• Dimensions: 284 x 162 x 89mm
• Weight: 1.9g
