Electro-Voice ELX112P aktívny reproduktor

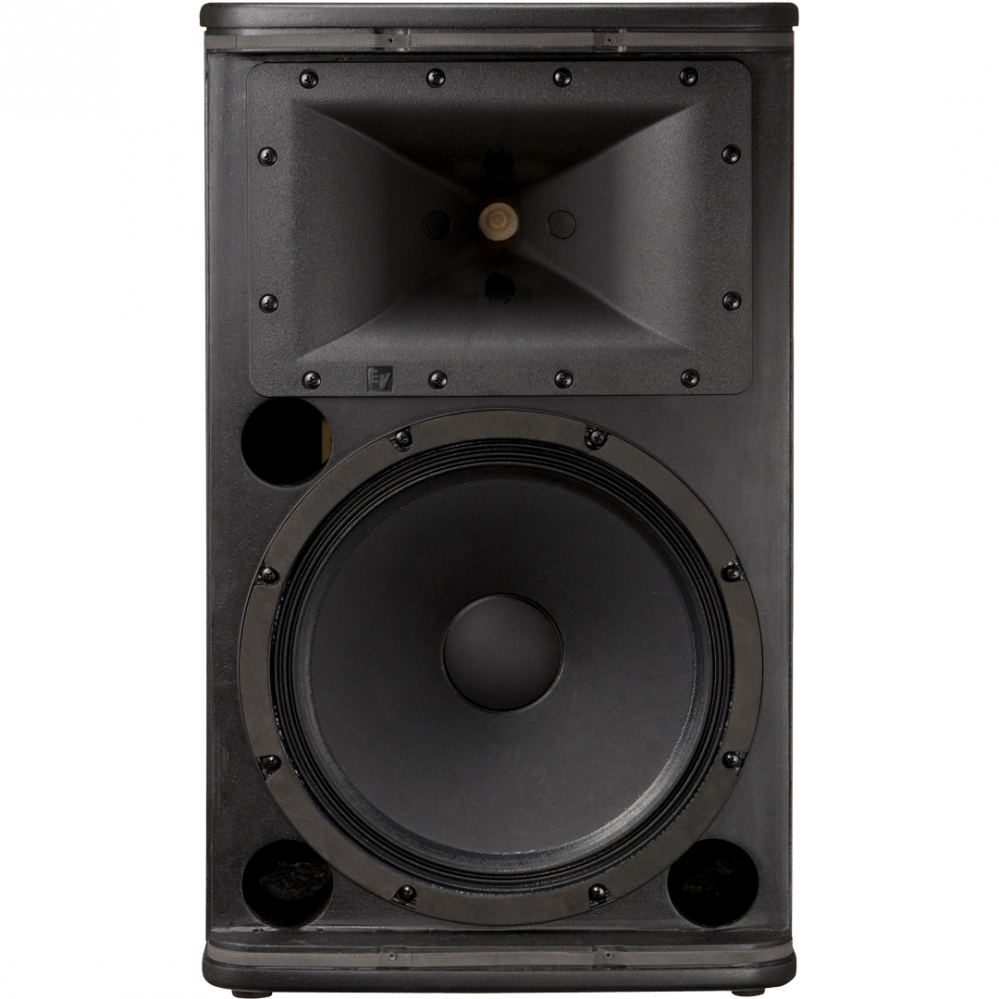

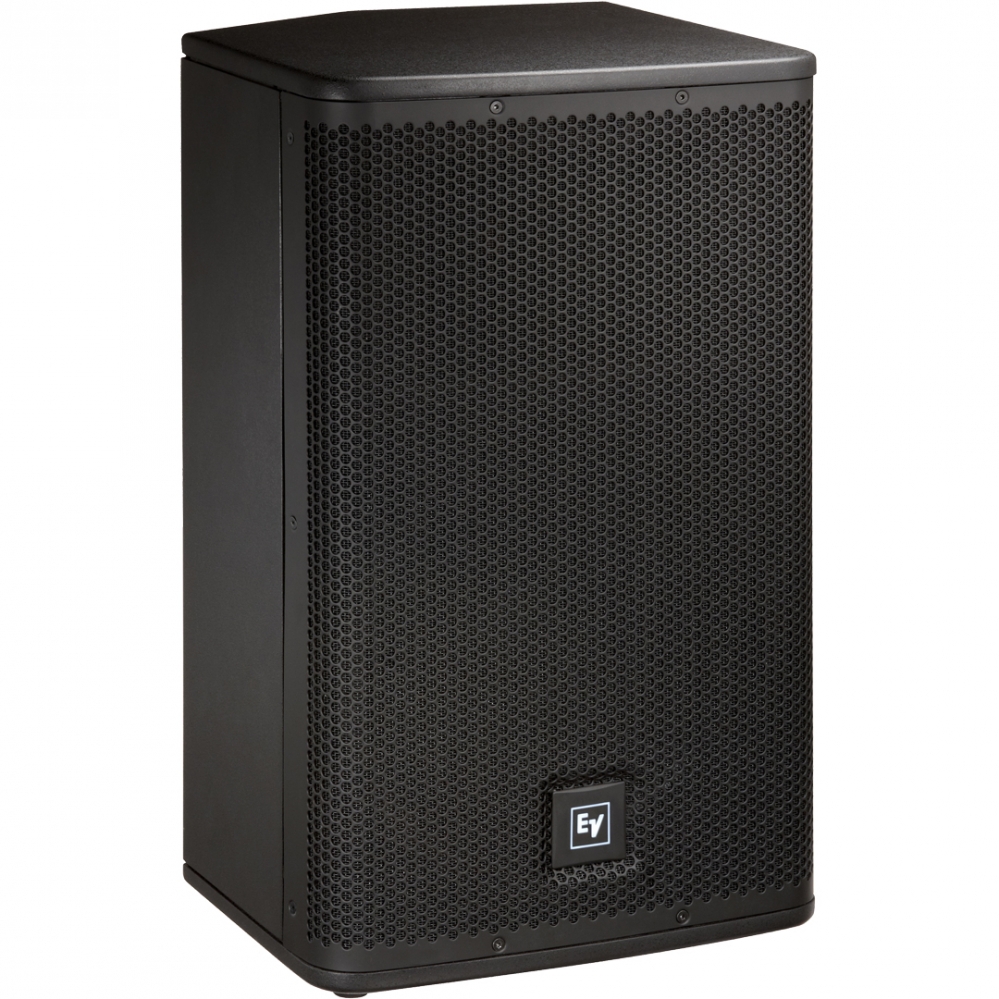

Electro-Voice ELX112P

Clear, powerful, and musical, the Live X series was born to command the stage for professional music performance. Available in both powered and passive versions, Live X loudspeakers offer top-quality components in remarkably affordable configurations that put the EV-quality experience within reach for artists, engineers, and live-sound businesses. Designed for a wide range of portable sound applications, Live X loudspeakers are housed in hardy stackable enclosures of solid wood, making them lighter than comparable-quality composite or plastic boxes and therefore easier to load, transport, and set up. With high output, extended frequency range, and high sensitivity, Live X loudspeakers are clean, flat, and hot, making music of all kinds sound its best. The Live X series is serious gear for serious sound.

FEATURES:
• ELX112 performance with self-amplification
• 50 Hz – 20 kHz frequency range
• Lightweight, cool-running 1000 W Class D amp
• Biamped with 24 dB/octave crossover
• Transducer protection
• Bypassable high-pass for external subwoofer
• XLR, TRS, and RCA connections
• Versatile gain, mixing, and processing controls
• Pre- or post-mix parallel outputs

SPECIFICATIONS:
• Axial Sensitivity (SPL, 1 W @ 1 m): 94 dB
• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
• Color: Black
• Speaker Type: Full-range, two-way, wedges
• Woofer Size: 304.8 mm (12")
• Frequency Response (-3 dB): 82 - 18000 Hz
• Frequency Response (-10 dB): 55 - 20000 Hz
• Internal Crossover : Yes
• Recommended High-Pass Frequency: 45 Hz
• Max. SPL/1m (calc): 132 dB Half Space
• Coverage (Nominal -6 dB) H: 90 °
• Coverage (Nominal -6 dB) V: 50 °
• System Power Handling (Continuous/Program/Peak): 250//1000 Watts
• LF Transducer: (1) EVS-12K, 305mm (12") Woofer
• HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency: 21000 Hz
• Nominal Impedance (Passive): 8 Ω
• Minimum Impedance: 7 Ω
• Connector Type: Parallel Neutrik® NL4
• Grill: 18GA Steel with Black Powdercoat
• Height: 607 mm (23.9")
• Width: 362 mm (14.25")
• Depth: 340 mm (13.39")
• Weight Net: 16 kg (35.27 lbs)
