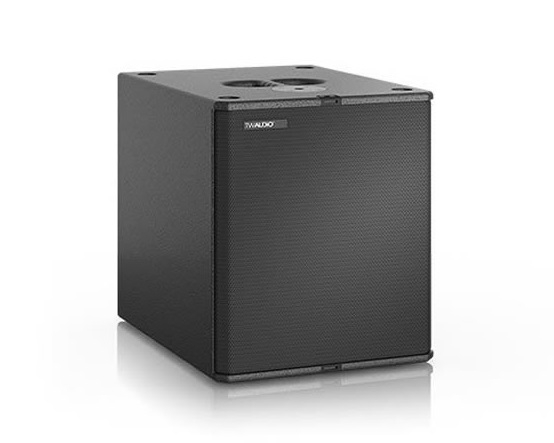

TW Audio B15A

TW Audio B15A

Slightly larger than the B10, yet still compact, the B15 is every bit as adaptable as its smaller sibling, especially when used with the optional PWB15 passive crossover. The 1 × 15" bass reflex system can be used simply as a passive bass extension or in switchable bi-amp mode in conjunction with TW AUDiO M- and C-series loudspeakers.

Specifications:

• Drivers: 1 × 15"
• Frequency range: 40 Hz - 1500 Hz
• Power capacity program / peak: 1200 / 2400 W
• Impedance: 4 Ω (2,5 Ω in passive mode with M8 at highpass output)
• Coverage: omni
• Sensitivity 1 W / 1 m: 94 dB
• SPLmax / 1 m: 127 dB
• Connection: NL4 2± (bi-amp)
• NL4 1± (passive)
• Dimensions (H × W × D): 506 × 440 × 560 mm [19.92 × 17.32 × 22.05 in]
• Weight: 22.1 kg
• Finish: Warnex texture paint
