Audio Technica AT-8022 mikrofón

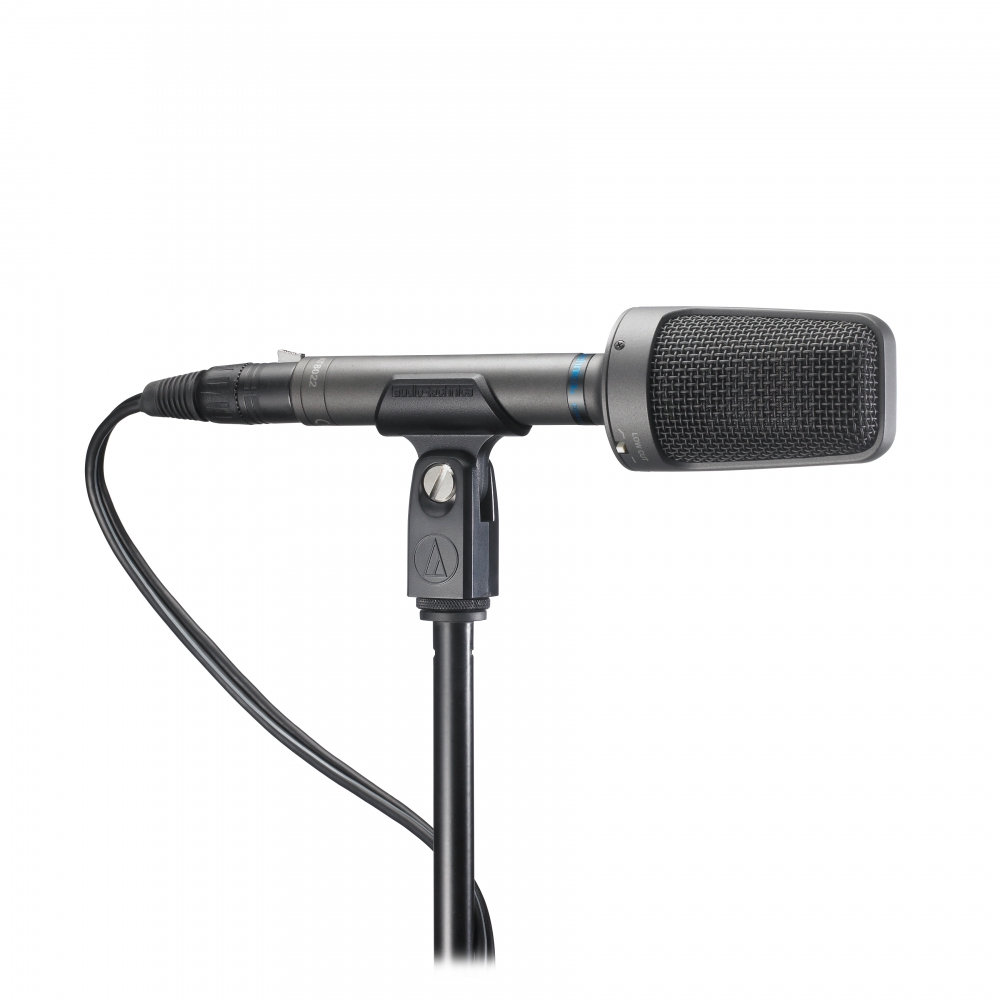

Audio Technica AT-8022

Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica's versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing. The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power. The microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

• Innovative capsule configuration produces accurate stereo image in smaller housing
• Compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording, interviews and home recording
• Ideal for use with handheld digital recording devices
• Operates on battery or phantom power - for use with pro or consumer equipment
• Switchable low-frequency roll-off
• Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced (3.5 mm TRS at output)
• RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
• Element: Fixed-charge back plate permanently polarized condenser
• Polar Pattern: X/Y Stereo
• Frequency Response: 20-15,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa Battery: 38 dB (12.5 mV) re 1V at 1 Pa
• Channel Balance: <2.5 dB
• Impedance: Phantom: 250 ohms Battery: 300 ohms
• Maximum Input Sound Level: Phantom: 128 dB SPL, 1 kHz at 1% T.H.D. Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: Phantom: 109 dB, 1 kHz at Max SPL Battery: 101 dB, 1 kHz at Max SPL
• Signal to Noise Ratio: 75 dB, 1 kHz at 1 Pa
• Phantom Power Requiremens: 11-52V DC, 2 mA typical (each channel)
• Battery Type: 1.5V AA/UM3
• Battery Current Life: 0.7 mA / 700 hours typical (alkaline)
• Switch: Battery On/Off; Flat, roll-off
• Weight: 247 g
• Dimensions: 186.0 mm long, 47.6 mm head diameter, 21.0 mm maximum body diameter
• Output Connector: Integral 5-pin XLRM-type
