Focusrite Forte karta

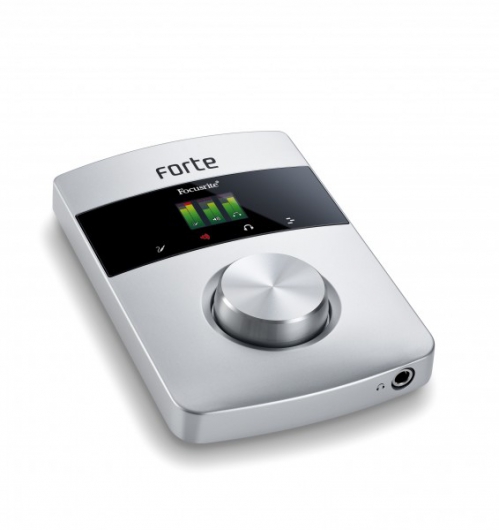

Focusrite Forte USB 2.0

With its two inputs and four outputs, Focusrite’s Forte provides a compact, rugged and effective path to and from your computer with the maximum possible audio quality from mic, line and instrument sources. In particular, Forte delivers exceptional dynamic range and noise floor – important in today’s world of an almost unlimited number of tracks making up a mix – and class-leading conversion performance, making sure you always sound your best in your recordings. The Forte USB 2.0 interface includes two of the latest design of Focusrite's remote-controlled microphone preamplifiers, based on those used in RedNet range, with a heritage that goes back 30 years. Forte incorporates highest-quality precision 24-bit A-D and D-A converters operating at sample rates up to 192kHz, featuring an advanced design implemented with multi-layer boards alongside careful component choices and layout to ensure maximum performance and minimum noise and distortion.

Specifications:

• Hardware Specifications
- 2 in / 4 out USB audio interface
- 192KHz, 24-bit conversion
- 2 Focusrite microphone preamplifiers
- Dynamic range of 117 dB (A-weighted)
- Microphone gain range: 0 75dB
- Microphone input: Classic with ISA based on a symmetrical input impedance of ~ 1.3K Ohms
- Maximum level of microphone input with minimal reinforcement for 0 dBFS (Rs = 150 Ohms, without pad): 12dBu + / 0.5 dB,
- Frequency response (R = 150 Ohms): 50Hz-42kHz + / 0.1 dB (-0.5dB @ 20Hz)
- THD + N @ -1dBFS: 0.0007% (+ 11dBu at the input, the minimum gain, 1 kHz, the filter 20Hz / 22kHz, R = 150 Ohms)
- Noise EIN: 128dB.
- Silver aluminium chassis

• Top panel:
- Large multi-function push encoder
- 4 touch sensitive mode buttons
- Headphone socket (front panel)

• Rear panel:
- 2 balanced monitor outputs – ¼” TRS Jack
- Input Loom socket
- Power socket
- USB 2.0 Port
- Kensington Lock slot (rear side)

• Included software:
- Ableton Live Lite 8
- Focusrite Midnight plug-in suite
- Forte Control software application

• Weights and dimensions
- Net Weight 476g
- Dims 170 x 116 x 36mm
