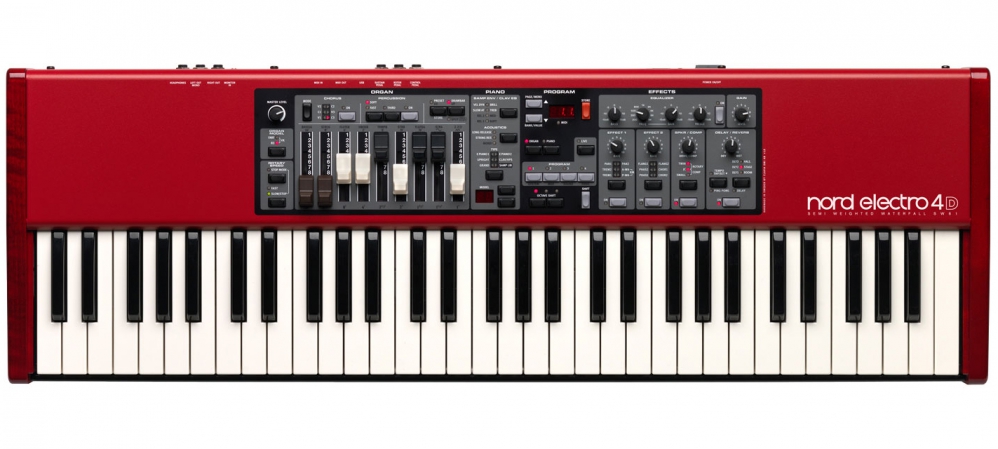

Nord Electro 4D SW61 organy, piano i syntezátor

Nord Electro 4D 61 organ, piano, synthesizer

The new Nord Electro 4 series feature everything from the award winning Electro 3 series, adding the acclaimed new Nord C2D tone wheel engine and 122 Rotary Speaker simulation, USB MIDI and more!

• 61-key (5 octaves, C-C) Velocity sensitive Semi Weighted Waterfall keyboard
• 185 MB memory dedicated to the Nord Piano Library

Piano Section
• The Piano Section has 5 categories - Grand, Upright, EPiano 1 (tine), Epiano 2 (reed) & Clav/Harpsichord.
• Each category can contain several different models.
• All pianos and samples can be replaced using the Nord Sound Manager application
• String Resonance-control (Gen 1)
• Long Release
• The Sample Library section can contain up to 50 samples from the Nord Sample Library
• Stereo pianos and samples can be played back in mono
• 40-60 Voices polyphony for Piano Library sounds. 15 Voices for Sample Library sounds.

Organ Section
• Three classic organ models: B3, Vox Continental, and Farfisa with full polyphony
• B3 Tone Wheel Organ engine from Nord C2D Combo Organ
• Two complete organ registrations for every program
• Percussion with 2nd, 3rd, normal/soft, fast/slow for the B3 model
• User adjustable percussion levels, percussion decays and key click level
• Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa)
• 4 Tonewheel modes: select the level of "vintage" desired
• MIDI Split: By connecting an extra MIDI keyboard the Nord Electro 4 can be used as a dual manual (Lower/Upper) organ with different drawbar settings for each manual

Effects
• Effect 1 - pan, tremolo, auto-wah, pedal-wah and ring modulator
• Three selectable depths for the pan and tremolo, rate controlled with the Effect 1 Rate knob
• Control pedal assigned to pedal-wah and ring modulator depth
• Effect 2 - phaser, flanger and chorus
• Three selectable depths, rate controlled with the Effect 2 Rate knob
• Comp/Amp - three amp/speaker simulations, compressor and rotary speaker
• Drive/Compression amount controlled with the Drive knob
• Rotary speed controls - Slow, Fast and Stopped
• Close or Normal microphone placement for 122 Rotary Speaker simulation
• User adjustable rotary treble and bass rotor speeds and acceleration rates
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
• Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong
• Reverb with five algorithms - Room, Stage Soft, Stage, Hall, Hall Soft
• Dry/Wet control

Connections
• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Control pedal input - ¼", 6,35 mm TRS stereo jack, like Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.
• 1 Sustain pedal input - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
• 1 Rotary Speaker speed switch pedal input - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
• MIDI In, MIDI Out - 5 pin DIN connectors
• USB - type B connector - for transferring sounds and USB MIDI
• IEC C14 power connector

• Dimensions: 900 mm x 100 mm x 300 mm
• Weight: 7.65 kg
