LD Systems WS ECO2 HHD1 bezdrôtový mikrofón

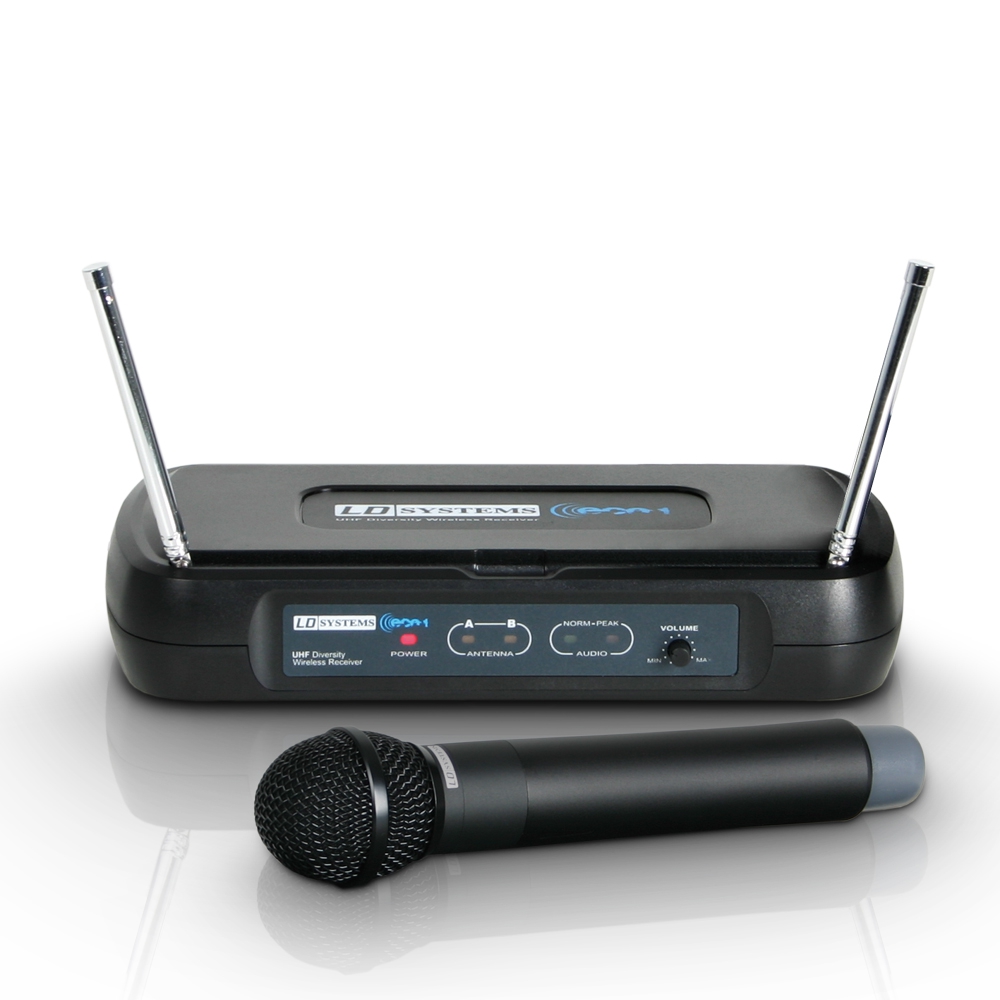

LD Systems ECO 2 HHD 1

LD Systems ECO Sets are the perfect introduction to wireless audio transmission: All components guarantee optimal audio delivery via professional outputs. The extensive features of the LD WS ECO Series Sets are remarkable in this price category.

The frequency band of 863 - 865 MHz permits operation in most EU countries with no registration or licensing required.

• 1 channel UHF PLL Diversity Wireless System
• Handheld Version
• Removable antennas and optional 19" Rack Mount Kit
• Handheld dynamic mic with soft-touch surface and Sensitivity switch
• Great operation range (50 m open field)
• Long battery life
• 1 fixed frequency: 863.100 MHz

SPECIFICATIONS

• Product number: LDWSECO2HHD1
• Product type: Receiver
• Type: diversity
• Transmission frequency range: 863.100MHz
• Weight: 0.88kg

LDWSECO2MD1 - Dynamic Handheld Microphone
• Product type: Handheld transmitter
• Transmission frequency range: 863.100MHz
• Channels: 1
• Microphone type: dynamic
• Directivity: cardioid
• Frequency response: 60Hz
• Rated HF output power: 10 mW
• Controls: Power, transmission power Hi / Low, gain
• Indicators: On / Low Battery
• Operating voltage: 2 x AA battery
• Operating time: >10 h (with alkaline batteries)
• Length: 250mm
• Diameter: 53mm
• Weight: 0.28kg
• Other features: incl. batteries

LDWSECO2R1 - Receiver
• Product type: Receiver
• Type: diversity
• Modulation Type: FM
• Transmission frequency range: 863.100MHz
• Channels: 1
• Antenna inputs: 2
• Antenna connector: fixed to housing
• Frequency response: 60Hz
• Noise reduction: squelch
• Signal-to-noise ratio: > 105dB
• Audio output, balanced: XLR
• Audio output, unbalanced: 6.3 mm Jack
• Controls: volume, Mute Level (Squelch)
• Indicators: Audio signal (Norm / Peak), antenna A/B, Power
• Operating voltage: 12 - 18 V DC, 400 mA, External Power Supply
• Width: 235mm
• Height: 44mm
• Depth: 118mm
• Weight: 0.6kg
• Accessories (included): power supply, batteries
