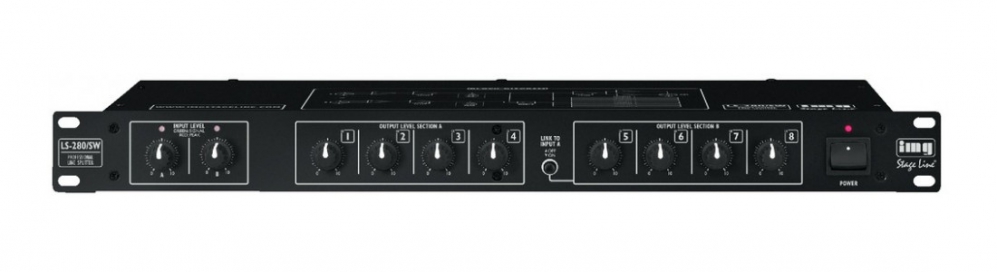

Monacor LS 280

Monacor LS 280

8-way line splitter with a 2 separate inputs. XLR connection and gain control for each input and output. Signal and a peak indication for the inputs via dual LEDs.

Specification:

Line inputs, mono: 100 mV/15 kΩ
Line outputs, mono: 1 V/100 Ω
Frequency range: 20-20,000 Hz
THD < 0.03 %
S/N ratio: 70 dB, unweighted
Power supply: 230 V˜/50 Hz/10 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x48x205 mm, 1 RS
Weight: 2.3 kg
