Martin Light Jockey II USB - interface USB DMX 1024 kanály

Martin Light Jockey II USB 1024 channels - driver

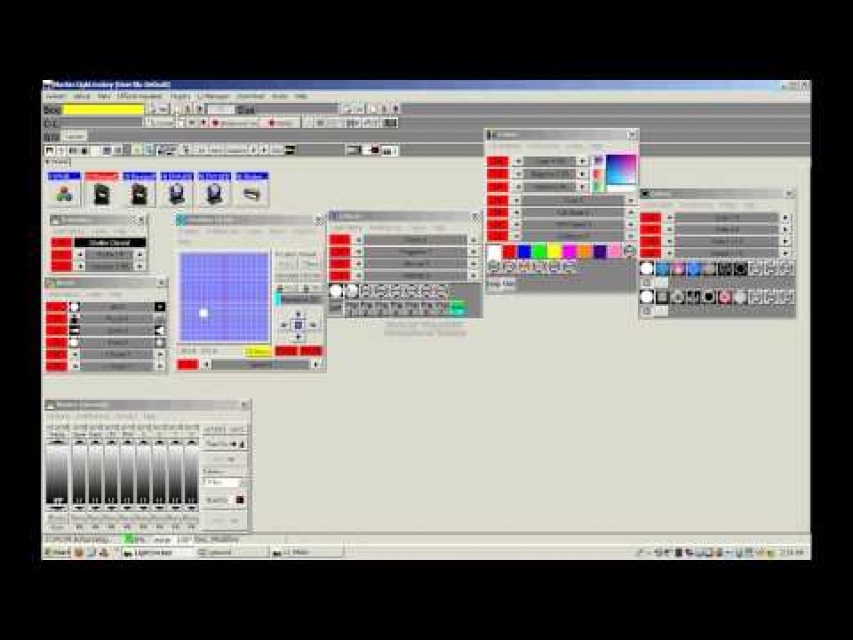

LightJockey 2 is a flexible, easy-to-use Windows-based controller package that includes a USB-to-DMX interface box. One of the industry’s most popular PC-based controllers for well over a decade, LightJockey 2 offers lighting designers greater flexibility, spontaneity and ease of use in a user-focused control package.

• Windows 7- and 8-compatible lighting controller software
• Large fixture library and user configurable editor
• Martin Show Designer-5 MC Edition 45-day trial 3D Visualizer
• Supports MP3, audio CD, SMPTE and MIDI timecode
• Martin USB Duo DMX interface with 2 x 512 Channels DMXIN/Out
• Control of up to 100 fixtures, 2048 DMX channels
• Graphical representation of all fixture functions
• Add-on LightJockey Manager, free downloadable software for scheduling events
• LED-Trix plug-in included for programming color-mixing fixtures

Programming
• Number of fixtures: Up to 100, or 680 RGB fixtures
• Fixture library: All Martin (DMX) fixtures, user-definable profiles for non-Martin fixtures, generic DMX profiles
• Control: Graphical control of all fixture parameters
• Visualization: Real-time realistic 3D Visualizer MSD MC Edition for off-site programming (45-day trial version)
• Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles
• LightJockey Manager trigger options

Playback
• Cue contains 12 sequences with global or individual fade time adjustment
• Master intensity control + 8 configurable intensity groups
• Manual override with direct access to all functions
• Independent background cue with 5 parallel sequences
• Blackout and fade out function
• Go button for manual cue lists
• Assignable keyboard hotkeys for faster access
• Smoke control independent from programming
• Follow spot function
• Cue list for synchronization with timer, digital audio or Audio CD-ROM timecode
• Audio analyzer for trigging sequences by audio
• Function and DMX channel override via DMX IN (depending on interface type)

Minimum System Requirements
• 256 MB RAM
• Standard PC with Pentium 200 MHz or equivalent
• Monitor resolution of 800 x 600 in 16 bit colors, with small fonts
vUSB port for DMX interface hardware
• 400+ MB hard disk space
• Windows XP, Vista and Windows 7 32/64 bit

Recommended
• 1024+ MB RAM
• Fast graphics card, 3D accelerated, with minimum 512 MB graphics cache
• CPU with dual core or faster
• 1024 x 768 monitor resolution, 16/32-bit true color, with small fonts
• USB port for DMX interface hardware
• Network card
• 600+ MB available hard disk space
• Windows XP, Vista and Windows 7 32/64 bit

Included Items
• Martin LightJockey software, CD version
• Martin One-Key with LightJockey license
• Martin USB Duo DMX Interface
• USB cable
• USB Duo DMX Driver Installer Software
• DMX Tools Software Package
• User documentation
