Názov: | Focusrite Saffire Pro 24 |
---|---|
Výrobca: | Focusrite |
Id tovaru / Kód: | 135092 / FOC-SAFFIRE-PRO24 |
Množstvo na sklade: | 0 pcs. |
Archívny tovar |

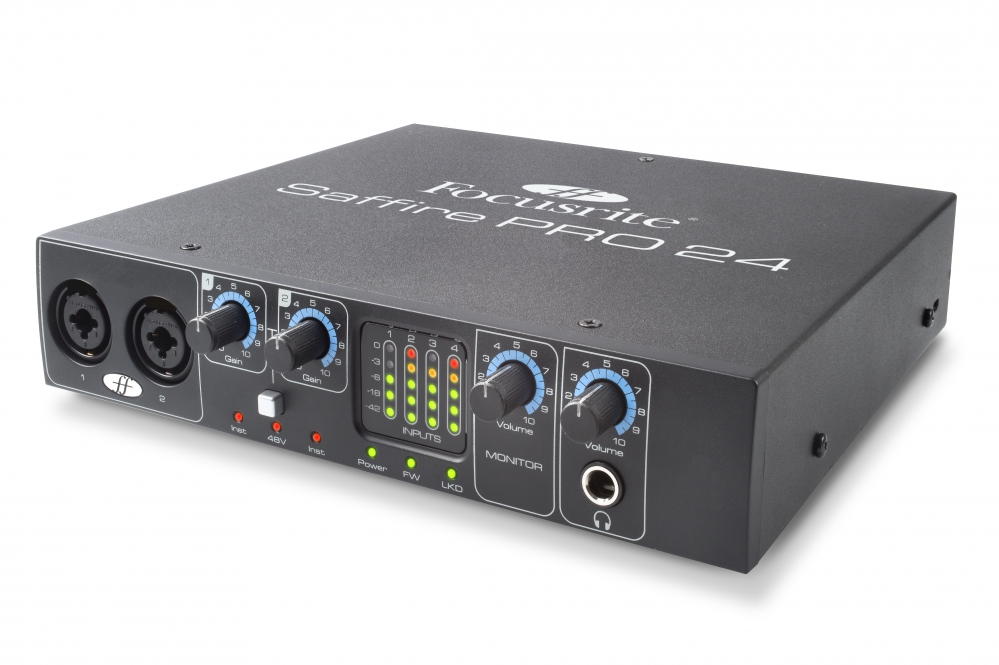

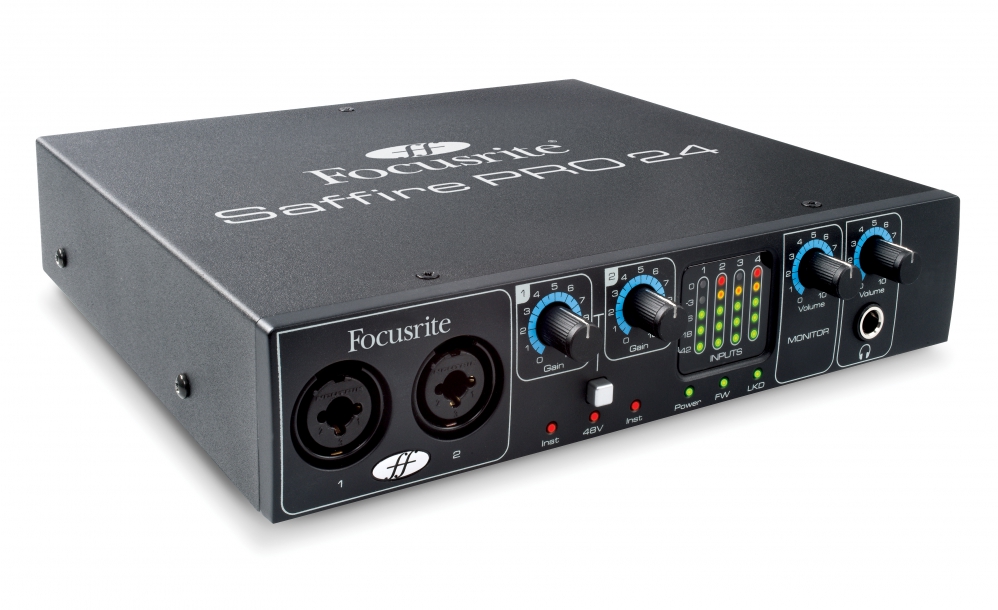

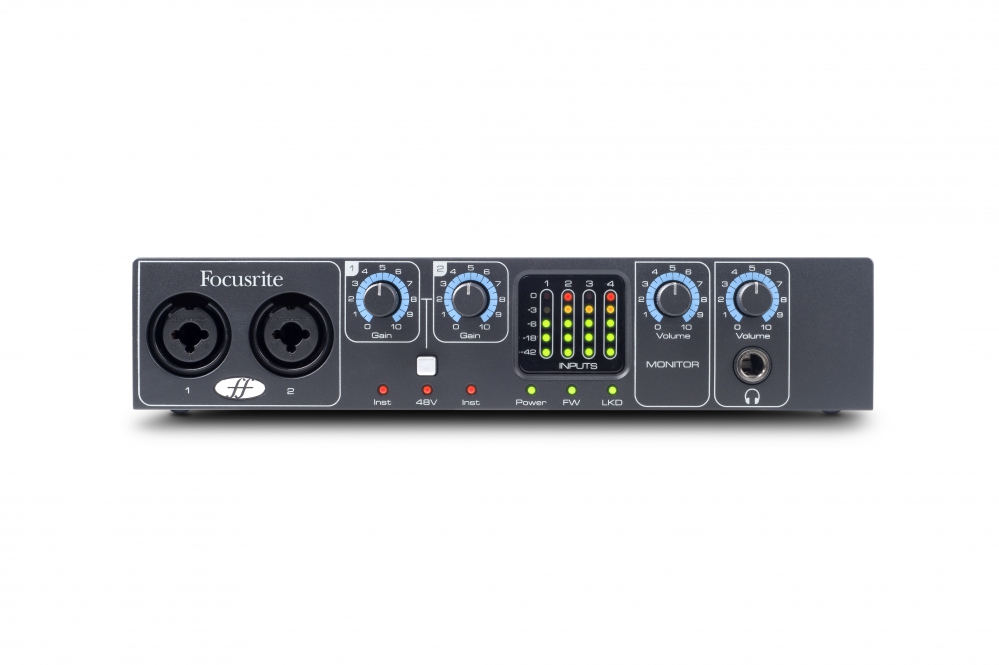

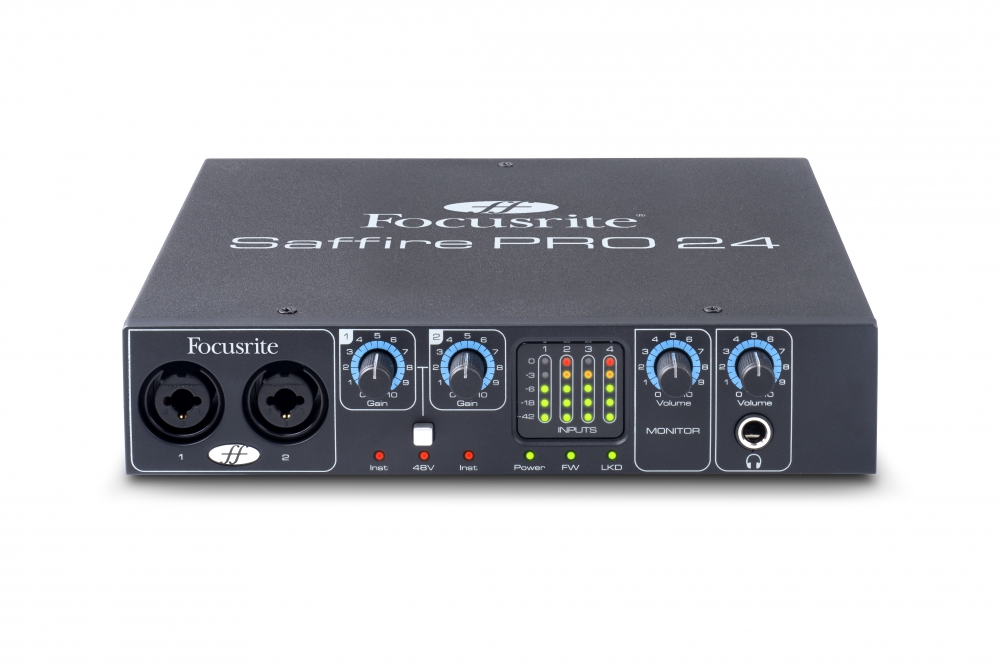

Focusrite Saffire Pro 24
Attentively designed with recording musicians and the modern home or commercial studio in mind, the Focusrite Saffire PRO 24 interface is one of the best sounding interfaces in the class of computer audio interfaces. The Saffire PRO 24 has not one, but two Focusrite preamps, giving you that signature Focusrite transparency and clarity, and a solid cornerstone for your sound. The combination of already legendary sonic performance, a host of I/O options and the most up-to-date in mix control software delivers seamless integration, unparalleled driver stability and great routing flexibility.
• 16x inputs (including internal loopback)
• 8x outputs
• 2x mic preamps
• 4x analogue inputs (2x combo mic/line/inst & 2x line inputs)
• ADAT input (optical)
• 1x S/PDIF I/O (coaxial)
• 1x FireWire connection
• new FireWire chipset
• headphone output
• MIDI in/out
• switchable 48V phantom power
• LED meter
• includes plug-in suite and power supply
Microphone Inputs
• Dynamic Range (A-Weighted): 106dB
• SNR (A-weighted): -105.3dB
• Frequency Response: 20Hz - 20kHz +/- 0.1 dB
• THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
• Noise: EIN > 125dB (128dB analogue to digital) (measured at 60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter)
• Maximum level (A-weighted): 8.6dBu at 1%
Line Inputs
• Dynamic Range (A-Weighted): 106.5dB
• SNR (A-weighted): -106dB
• Frequency Response: 20Hz - 20kHz +/- 0.1dB
• THD+N (A-Weighted): < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
• Noise: -90dBu (22Hz/22kHz bandpass filter)
• Maximum level (A-weighted): 16.3dBu at 1%
Instrument Inputs
• Frequency Response 20Hz-20KHz +/- 0.1dB
• Maximum Input Level min gain no pad +8dBu
• Maximum Input Level max gain no pad -42dBu
• THD+N, -1dBFS, min gain, no pad < 0.0015%
• SNR 105dB "A"
• DNR 105dB "A"
• Input Impedance > 1MOhm
• X-talk < -100dB
• Adjustable Gain > 50dB
• Pad Attenuation 10dB
Headphone Outputs
• Frequency Response 20Hz-20KHz +/- 0.1dB
• SNR 105dB "A"
• DNR 105dB "A"
• Maximum Output into 32R +12.4dBu (+10.2dBV)
• Power into 32R 250mW
• Output Impedance < 7Ohms
• Load Impedance > 24Ohms
Line level Outputs
• Dynamic Range (A-Weighted): 105dB
• SNR (A-weighted): -104.5dB
• THD+N: < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
• Maximum level (A-weighted): 16.13dBu at 0.885%
• Additional Conversion Performance
• Clock jitter < 250 picoseconds
• THD+N AMPL (A-weighted)= -107dBFS

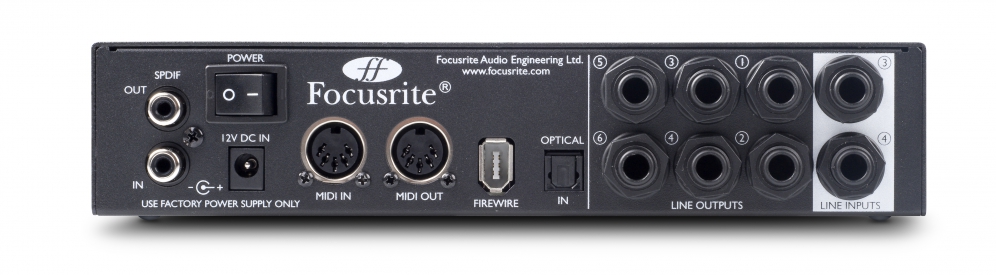

CONNECTIVITY
• Analogue Channel Inputs (Inputs 1-4)
• 2 x XLR Mic/Line Neutrik Combi-Jacks (Inputs 1-2)
• 2 x XLR Instrument Neutrik Combi-Jacks (Instrument on inputs 1 and 2 only) Automatic switch of Mic / Line (inserting a jack switches from Mic to either Line or Instrument (instrument selected via the software control panel)Line inputs 3-4 have low and high gain settings can be controlled from the Saffire MixControl software (low gain being the default)
• Digital Channel Inputs (Inputs 5-14) 44.1-96kHz
• Stereo S/PDIF input on RCA
• 1 x 8 channel ADAT input on Optical Connector (SDPIF 3&4 set in preferences menu)
• Analogue Audio Outputs (Outputs 1-6)
• 6 x TRS analogue outputs (Outputs 1-6)
• 1 x TRS stereo headphone output (same as outputs 3 & 4)
• Digital Channel Outputs (Outputs 7-8) 44.1-96kHz
• Stereo S/PDIF output on RCA
Other I/O
• 1 x 6-pin FireWire socket
• 2 Standard 5-pin DIN MIDI connectors: In and Out
• 12V DC power input connector for use with external PSU
Dimensions: 215 x 45 x 220mm
Weight: 1.6kg
