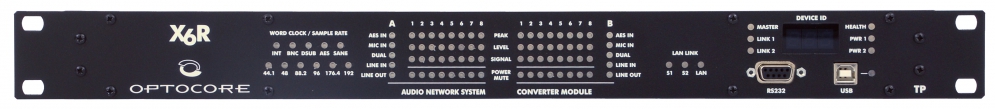

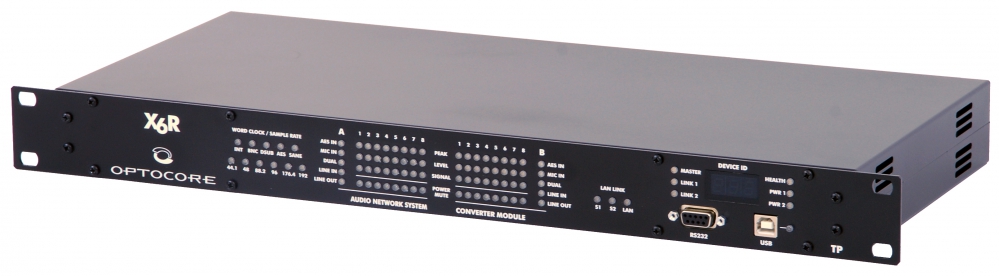

Optocore X6R-TP-16MI

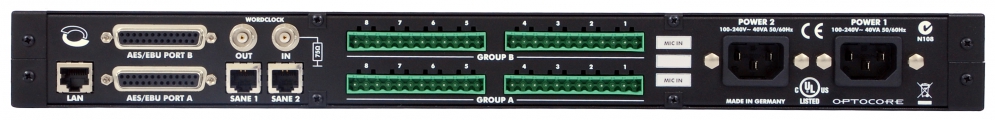

12 in 1, the X6R is a converter unit with the highest degree of flexibility concerning the I/O configuration. Six different card types enable to customise the card slots on the rear of the device, the conversion of analogue signals – 16 inputs, 16 outputs, 8 inputs and 8 outputs or dual microphone inputs with two independent adjustable preamps – to AES/EBU is provided as well as the sample rate convertion for AES/EBU. Twelve different versions are available. The AES/EBU card could be set from 16 channels to 8 channels in combination with mic IN, line IN or line OUT card and IN/OUT configuration can be changed in groups of 8 channels. The X6R is especially designed for rack mounted applications and permanent installation. All cards are equipped with Euroblock connectors. With further SANE TP devices, the X6R-TP offers a great flexibility to build the CAT5 network exactly suiting an application's need. These common installation interfaces provide a simple and cost-efficient connection to other audio equipment.

Features:

• 2 x Analog boards – 16 x Analog channels
• Analog board selection: 8 Mic IN, 8 Line IN, 8 Line OUT, 8 DualMic
• Any 2-board combination available
• Microphone Preamps controllable from different digital consoles
• 2 x SANE ports for fiber FX device channel extension or MADI Cat5
• Daisy Chain up to 7 TP devices with single FX unit
• 16 x AES3 ports – 32 audio channels
• Analog and AES channels fully routable to any FX or TP device in the Network
• 1 x LAN
