BOSS OC-3 Super Octave gitarový efekt

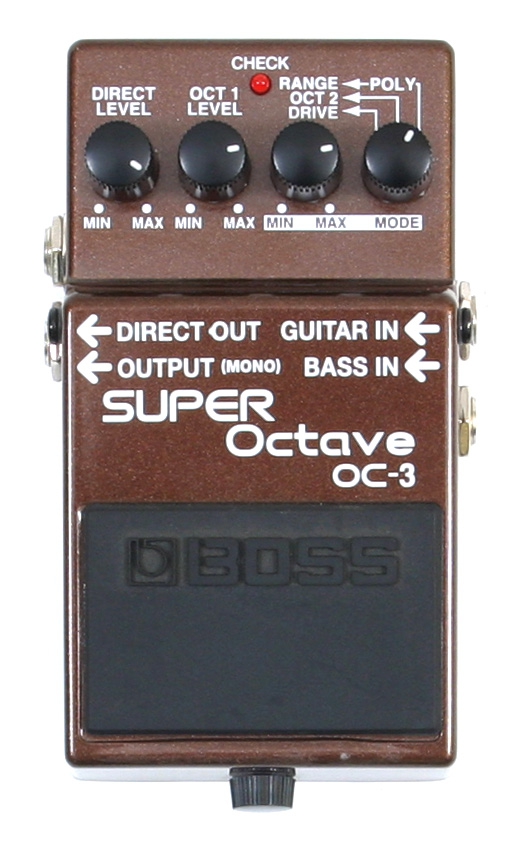

BOSS OC-3 Super Octave Pedal

The BOSS OC-3 Super Octave gives guitarists high-quality octave effects with a single stomp. Three modes are provided, including a new Polyphonic Octave mode, a Drive mode with distortion, and the original OC-2 mode. The versatile OC-3 also has separate inputs for both guitar and bass.

FEATURES
• World’s first compact pedal with true Polyphonic Octave effects
• New Drive mode adds distortion to octave notes for a fatter, more aggressive tone
• Includes the original OC-2 mode, capable of producing notes one and two octaves down
• Poly Octave effect adjustable to play within a specific note range
• Bass input for adapting octave sound to bass guitars

SPECIFICATIONS
• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Residual Noise: -96 dBu (IHF-A, Typ.) * All knobs at center position
• Controls: Pedal switch, DIRECT LEVEL knob, OCT1 LEVEL knob, CONTROL knob, MODE knob
• Connectors: GUITAR IN jack, BASS IN jack, OUTPUT (MONO) jack, DIRECT OUT jack, AC adaptor jack (DC 9 V)
• Power Supply: DC 9 V: Dry battery (9 V type), AC Adaptor (PSA-series: optional)
• Current Draw: 50 mA (DC 9 V)
• Accessories: Owner's Manual, Dry battery (9 V type) S-006P/9 V (6F22/9 V)
• Options: AC Adaptor (PSA-Series)
• SIZE AND WEIGHT ( INCL. BATTERY )
- Width: 73 mm
- Depth: 129 mm
- Height: 59 mm
- Weight: 440 g
